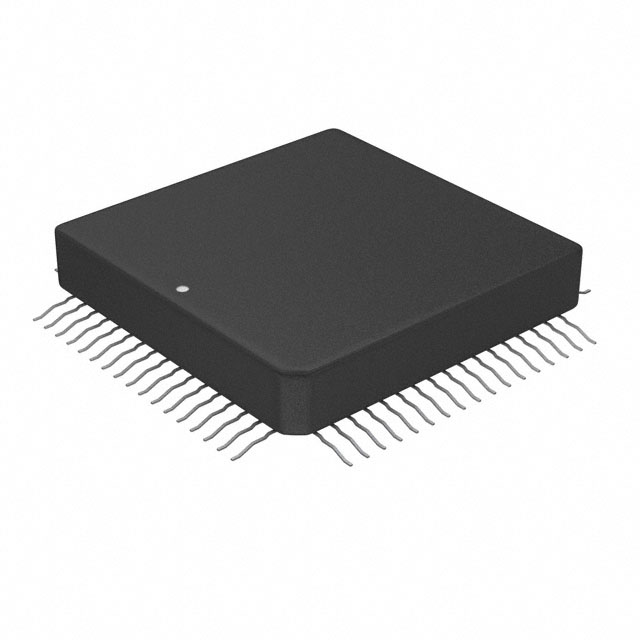

AD13280AZ

Obsolete

Analog Devices

IC ADC 12BIT 68CLCC

Search across all available documentation for this part.

Obsolete

Analog Devices

IC ADC 12BIT 68CLCC

Technical Specifications

Parameters and characteristics for this part

Part	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Input Type	Architecture	Package / Case	Configuration	Data Interface	Number of Bits	Number of A/D Converters	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Reference Type	Number of Inputs	Ratio - S/H:ADC	Mounting Type	Voltage - Supply, Analog	Features	Sampling Rate (Per Second)
Analog Devices AD13280AF	68-CLCC (24.13x24.13)	85 °C	-40 °C	Differential Single Ended	Pipelined	68-CLCC	S/H-ADC	Parallel	12 bits	2	3.465 V	3.135 V	Internal	12	1:1	Surface Mount	5 V	Simultaneous Sampling	80 M
Analog Devices AD13280AZ	68-CLCC (24.13x24.13)	85 °C	-25 °C			68-CLCC		Parallel	12 bits	2						Surface Mount			80 M

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 913.04

General part information

12 Bit Analog to Digital Converter Input 2 68-CLCC (24.13x24.13)
