2256/6 SL005

Active

ALPHA WIRE

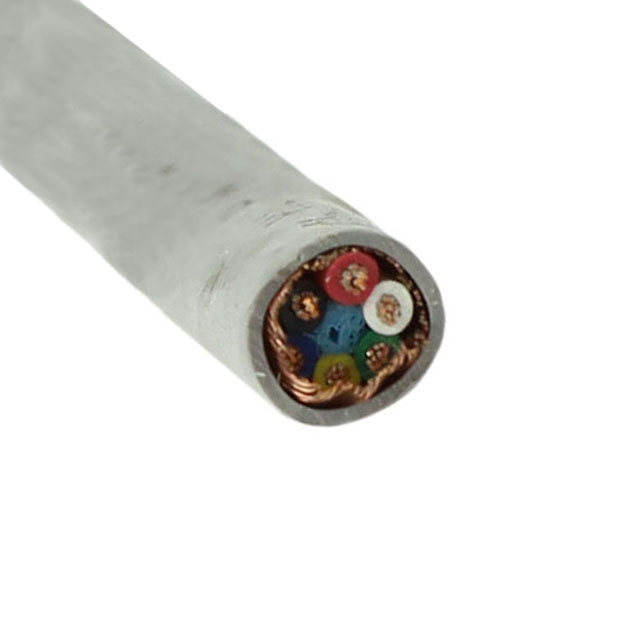

CABLE 6COND 20AWG SLATE SHLD

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 6COND 20AWG SLATE SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	2256/6 SL005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	10
Jacket (Insulation) Diameter [diameter]	0.264 in
Jacket (Insulation) Diameter [diameter]	6.71 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	6
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	95 %
Shield Material	Copper, Bare
Shield Type	Spiral
Usage	Control, Communication
Voltage	300 V
Wire Gauge	20 AWG

Part	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Conductor Insulation	Shield Material	Shield Type	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Number of Conductors	Usage	Voltage	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Conductor Material	Length [x]	Length [x]
ALPHA WIRE 2256/6 SL001	Multi-Conductor	30 AWG	10	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)	Copper Bare	Spiral	Poly-Vinyl Chloride (PVC)	-20 C	80 C	20 AWG	6	Communication Control	300 V	Slate	0.02 in	0.508 mm	0.264 in	6.71 mm	95 %	Copper Tinned
ALPHA WIRE 2256/6 SL005	Multi-Conductor	30 AWG	10			Poly-Vinyl Chloride (PVC)	Copper Bare	Spiral	Poly-Vinyl Chloride (PVC)	-20 C	80 C	20 AWG	6	Communication Control	300 V	Slate	0.02 in	0.508 mm	0.264 in	6.71 mm	95 %	Copper Tinned	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 13.16

General part information

6 Conductor Multi-Conductor Cable Slate 20 AWG Spiral 100.0' (30.5m)
