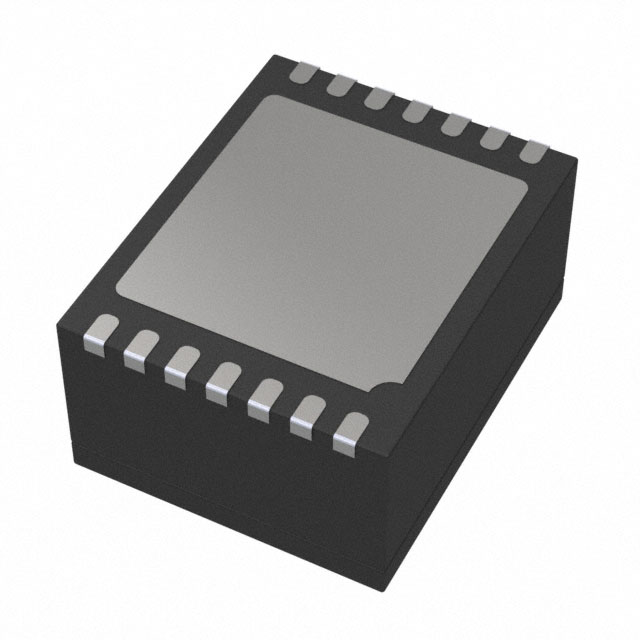

MLX90817LXE-DBG-001-SP

Active

Melexis Technologies NV

SENSOR 14DFN

Search across all available documentation for this part.

Active

Melexis Technologies NV

SENSOR 14DFN

Technical Specifications

Parameters and characteristics for this part

Specification	MLX90817LXE-DBG-001-SP

Applications	Board Mount
Features	Temperature Compensated, Amplified Output
Mounting Type	Surface Mount
Output Type	Analog Voltage
Package / Case	14-BFDFN Exposed Pad
Port Style	No Port
Supplier Device Package	14-DFN (4x5)
Termination Style	SMD (SMT) Tab
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Package / Case	Port Style	Termination Style	Features	Output Type	Supplier Device Package	Applications	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]
Melexis Technologies NV MLX90817LXE-DBG-012-RE	14-BFDFN Exposed Pad	No Port	SMD (SMT) Tab	Amplified Output Temperature Compensated	Analog Voltage	14-DFN (4x5)	Board Mount	Surface Mount	4.5 V	5.5 V
Melexis Technologies NV MLX90817LXE-DBG-001-SP	14-BFDFN Exposed Pad	No Port	SMD (SMT) Tab	Amplified Output Temperature Compensated	Analog Voltage	14-DFN (4x5)	Board Mount	Surface Mount	4.5 V	5.5 V
Melexis Technologies NV MLX90817LXE-DBG-013-SP	14-BFDFN Exposed Pad	No Port	SMD (SMT) Tab	Amplified Output Temperature Compensated	Analog Voltage	14-DFN (4x5)	Board Mount	Surface Mount	4.5 V	5.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor Absolute 14-BFDFN Exposed Pad
