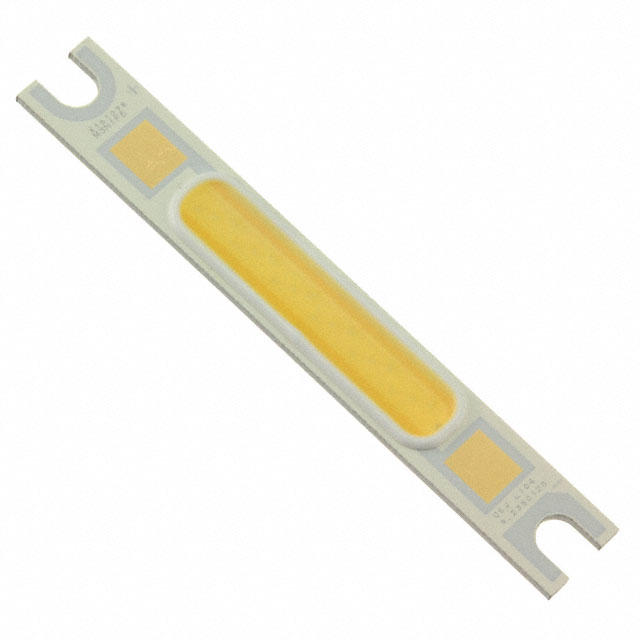

CL-L104-MC3WW1-F5

Active

Citizen Finedevice Co Ltd

LED COB CL-L104 WM WH RECT 3500K

Deep-Dive with AI

Search across all available documentation for this part.

CL-L104-MC3WW1-F5

Active

Citizen Finedevice Co Ltd

LED COB CL-L104 WM WH RECT 3500K

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CL-L104-MC3WW1-F5

CCT (K)	3500 K
Color	White, Warm
Configuration	Rectangle
CRI (Color Rendering Index)	85
Current - Max [Max]	720 mA
Current - Test	350 mA
Height [z]	1.35 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	98 lm/W
Luminous Flux @ Current/Temperature	315 lm
Size / Dimension [x]	50 mm
Size / Dimension [y]	7 mm
Type	Chip On Board (COB)
Voltage - Forward (Vf) (Typ)	9.2 V

CL-L104 Series

Part	Luminous Flux @ Current/Temperature	CRI (Color Rendering Index)	Lumens/Watt @ Current - Test	Size / Dimension [y]	Size / Dimension [x]	Configuration	Height [z]	Color	Voltage - Forward (Vf) (Typ)	Lens Type	Type	Current - Max [Max]	CCT (K)	Current - Test
Citizen Finedevice Co Ltd CL-L104-HC6N1-F5	565 lm	90	88 lm/W	7 mm	50 mm	Rectangle	1.35 mm	Cool White	9.2 V	Flat	Chip On Board (COB)	1.44 A
Citizen Finedevice Co Ltd CL-L104-MC3W1-F5	320 lm	85	99 lm/W	7 mm	50 mm	Rectangle	1.35 mm	Neutral White	9.2 V	Flat	Chip On Board (COB)	720 mA	4000 K	350 mA
Citizen Finedevice Co Ltd CL-L104-MC6L1-F5	610 lm	85	95 lm/W	7 mm	50 mm	Rectangle	1.35 mm	Warm White	9.2 V	Flat	Chip On Board (COB)	1.44 A	3000 K
Citizen Finedevice Co Ltd CL-L104-C3N-F			120 lm/W	7 mm	50 mm	Rectangle	1.35 mm	Cool White	9.2 V	Flat	Chip On Board (COB)	720 mA	5000 K	350 mA
Citizen Finedevice Co Ltd CL-L104-MC3WW1-F5	315 lm	85	98 lm/W	7 mm	50 mm	Rectangle	1.35 mm	Warm White	9.2 V	Flat	Chip On Board (COB)	720 mA	3500 K	350 mA
Citizen Finedevice Co Ltd CL-L104-HC3W1-F5	275 lm	90	85 lm/W	7 mm	50 mm	Rectangle	1.35 mm	Neutral White	9.2 V	Flat	Chip On Board (COB)	720 mA	4000 K	350 mA
Citizen Finedevice Co Ltd CL-L104-HC6L1-F5	520 lm	90	81 lm/W	7 mm	50 mm	Rectangle	1.35 mm	Warm White	9.2 V	Flat	Chip On Board (COB)	1.44 A	3000 K
Citizen Finedevice Co Ltd CL-L104-HC6WW1-F5	530 lm	90	82 lm/W	7 mm	50 mm	Rectangle	1.35 mm	Warm White	9.2 V	Flat	Chip On Board (COB)	1.44 A	3500 K
Citizen Finedevice Co Ltd CL-L104-MC3N1-F5	325 lm	85	101 lm/W	7 mm	50 mm	Rectangle	1.35 mm	Cool White	9.2 V	Flat	Chip On Board (COB)	720 mA		350 mA
Citizen Finedevice Co Ltd CL-L104-C6N-F	760 lm		118 lm/W	7 mm	50 mm	Rectangle	1.35 mm	Cool White	9.2 V	Flat	Chip On Board (COB)	1.44 A	5000 K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 6.82

Description

General part information

CL-L104 Series

LED Lighting COBs Engines Modules Chip On Board (COB) CL-L104 White, Warm Rectangle

Documents

Technical documentation and resources

No documents available
