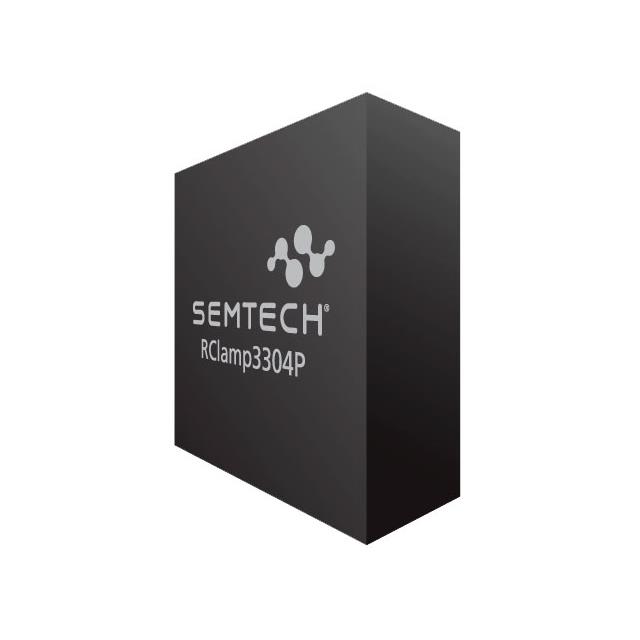

RCLAMP3304P.TCT

Active

Semtech Corporation

ESD PROTECTION DEVICE, 16 V, SLP1616P6, 6 PINS, 3.3 V, 0.8 PF

Search across all available documentation for this part.

Active

Semtech Corporation

ESD PROTECTION DEVICE, 16 V, SLP1616P6, 6 PINS, 3.3 V, 0.8 PF

Technical Specifications

Parameters and characteristics for this part

Specification	RCLAMP3304P.TCT

Applications	Multimedia Card Interface
Capacitance @ Frequency	0.8 pF
Current - Peak Pulse (10/1000µs)	5 A
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-UFDFN Exposed Pad
Power - Peak Pulse	80 W
Power Line Protection	True
Supplier Device Package	SLP1616P6 (1.6x1.6)
Type	Steering
Unidirectional Channels [custom]	4
Voltage - Breakdown (Min) [Min]	3.5 V
Voltage - Clamping (Max) @ Ipp [Max]	16 V
Voltage - Reverse Standoff (Typ)	3.3 V

Part	Type	Applications	Unidirectional Channels [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Clamping (Max) @ Ipp [Max]	Current - Peak Pulse (10/1000µs)	Capacitance @ Frequency	Mounting Type	Supplier Device Package	Power - Peak Pulse	Voltage - Reverse Standoff (Typ)	Package / Case	Voltage - Breakdown (Min) [Min]
Semtech Corporation RCLAMP3304P.TCT	Steering	Multimedia Card Interface	4	-40 °C	85 °C	16 V	5 A	0.8 pF	Surface Mount	SLP1616P6 (1.6x1.6)	80 W	3.3 V	6-UFDFN Exposed Pad	3.5 V
Semtech Corporation RCLAMP3304N.TCT	Steering	General Purpose	4	-55 °C	125 ¯C	18 V	25 A	3.8 pF	Surface Mount	SLP2626P10 (2.6x2.6)	450 W	3.3 V	10-UFDFN Exposed Pad	3.5 V
Semtech Corporation RCLAMP3304NATCT	Steering	General Purpose	4	-55 °C	125 ¯C	18 V	25 A	3.8 pF	Surface Mount	SLP2626P10 (2.6x2.6)	450 W	3.3 V	10-UFDFN Exposed Pad	3.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Transient protection for high-speed data lines toIEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)IEC 61000-4-4 (EFT) 40A (5/50ns)

IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)

IEC 61000-4-4 (EFT) 40A (5/50ns)
