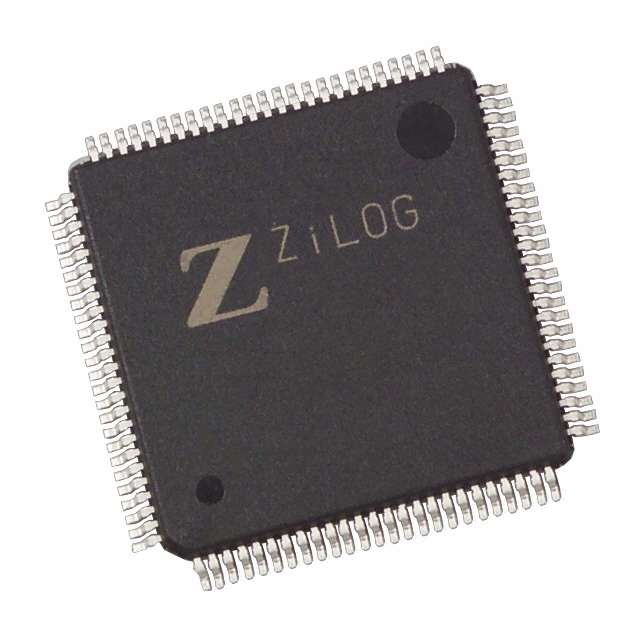

Z8L18220ASC

Obsolete

Zilog

IC MPU ZIP 20MHZ 100VQFP

Search across all available documentation for this part.

Obsolete

Zilog

IC MPU ZIP 20MHZ 100VQFP

Technical Specifications

Parameters and characteristics for this part

Specification	Z8L18220ASC

Additional Interfaces	ASCI, UART, SCC, CSIO
Core Processor	Z8S180
Graphics Acceleration	False
Mounting Type	Surface Mount
Number of Cores/Bus Width [custom]	8 Bit
Number of Cores/Bus Width [custom]	1 Core
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Package / Case	100-LQFP
RAM Controllers	DRAM
Speed	20 MHz
Supplier Device Package	100-VQFP (14x14)
Voltage - I/O	3.3 V

Part	Supplier Device Package	Voltage - I/O	Package / Case	Mounting Type	RAM Controllers	Core Processor	Graphics Acceleration	Number of Cores/Bus Width [custom]	Number of Cores/Bus Width [custom]	Additional Interfaces	Operating Temperature [Max]	Operating Temperature [Min]	Speed
Zilog Z8L18220FSC	100-QFP	3.3 V	100-QFP	Surface Mount	DRAM	Z8S180		8 Bit	1 Core	ASCI CSIO SCC UART	70 °C	0 °C	20 MHz
Zilog Z8L18220ASC	100-VQFP (14x14)	3.3 V	100-LQFP	Surface Mount	DRAM	Z8S180		8 Bit	1 Core	ASCI CSIO SCC UART	70 °C	0 °C	20 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Z8S180 Microprocessor IC ZIP™ 1 Core, 8-Bit 20MHz 100-VQFP (14x14)
