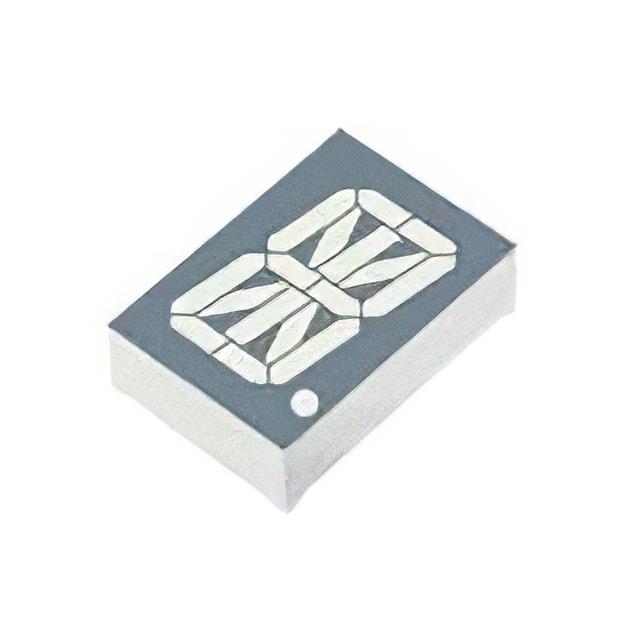

PSA12-11SURKWA
ActiveKingbright
1.2" RED ALPHANUMERIC LED DISPLA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PSA12-11SURKWA
ActiveKingbright
1.2" RED ALPHANUMERIC LED DISPLA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PSA12-11SURKWA |
|---|---|
| Color | Red |
| Common Pin | Common Anode |
| Current - Test | 10 mA |
| Digit/Alpha Size | 1.2 in |
| Digit/Alpha Size | 30.48 mm |
| Display Type | 16-Segment, Alphanumeric |
| Millicandela Rating | 63 mcd |
| Number of Characters [custom] | 1 |
| Package / Case | 18-DIP |
| Package / Case | 20.32 mm |
| Package / Case | 0.8 " |
| Power Dissipation (Max) [Max] | 75 mw |
| Size / Dimension [x] | 1.575 in |
| Size / Dimension [x] | 40 mm |
| Size / Dimension [y] | 1.083 in |
| Size / Dimension [y] | 27.5 mm |
| Size / Dimension [z] | 11.5 mm |
| Size / Dimension [z] | 0.453 " |
| Voltage - Forward (Vf) (Typ) | 1.85 V, 3.7 V |
| Wavelength - Peak | 645 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.98 | |
| 10 | $ 4.95 | |||
| 100 | $ 3.91 | |||
| 500 | $ 3.49 | |||
| 1000 | $ 3.37 | |||
| 2000 | $ 3.26 | |||
Description
General part information
PSA12 Series
Display Modules - LED Character and Numeric Red 16-Segment, Alphanumeric 1 Character Common Anode 1.85V, 3.7V 10mA 1.575" H x 1.083" W x 0.453" D (40.00mm x 27.50mm x 11.50mm) 18-DIP (0.800", 20.32mm)
