DSM7TA56101T
ActiveVisual Communications Company - VCC

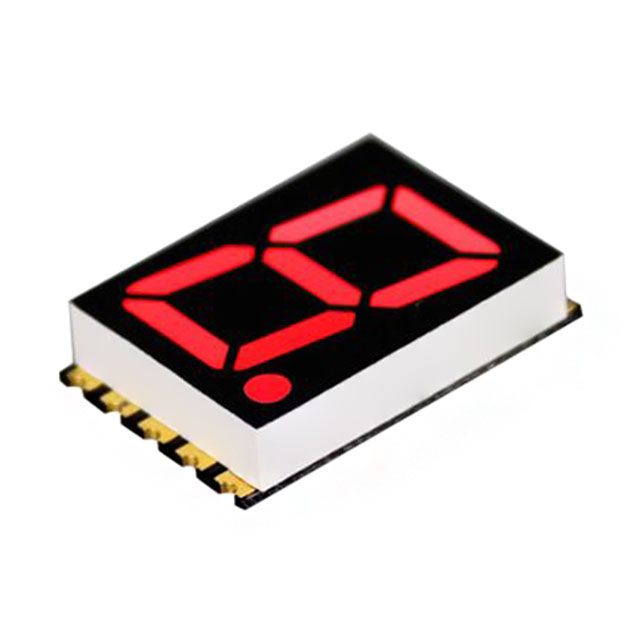

DISPLAY 7SEG 0.56" SGL RED 10SMD
Deep-Dive with AI
Search across all available documentation for this part.
DSM7TA56101T
ActiveVisual Communications Company - VCC
DISPLAY 7SEG 0.56" SGL RED 10SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DSM7TA56101T |
|---|---|
| Color | Red |
| Common Pin | Common Anode |
| Current - Test | 20 mA |
| Digit/Alpha Size | 0.56 in |
| Digit/Alpha Size | 14.22 mm |
| Display Type | 7-Segment |
| Millicandela Rating | 90 mcd |
| Number of Characters [custom] | 1 |
| Package / Case | 10-SMD, No Lead |
| Size / Dimension [x] | 0.128 in |
| Size / Dimension [x] | 3.25 mm |
| Size / Dimension [y] | 0.492 " |
| Size / Dimension [y] | 12.5 mm |
| Size / Dimension [z] | 0.748 " |
| Size / Dimension [z] | 19 mm |
| Voltage - Forward (Vf) (Typ) | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.87 | |
| 10 | $ 1.90 | |||
| 100 | $ 1.40 | |||
| Digi-Reel® | 1 | $ 2.87 | ||
| 10 | $ 1.90 | |||
| 100 | $ 1.40 | |||
| Tape & Reel (TR) | 800 | $ 1.16 | ||
| 1600 | $ 1.11 | |||
| 2400 | $ 1.08 | |||
| 4000 | $ 1.05 | |||
| 5600 | $ 1.04 | |||
| 8000 | $ 1.02 | |||
Description
General part information
DSM7TA56101 Series
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 2V 20mA 0.748" H x 0.492" W x 0.128" D (19.00mm x 12.50mm x 3.25mm) 10-SMD, No Lead
