51M30-01-3-04S

Active

Grayhill Inc.

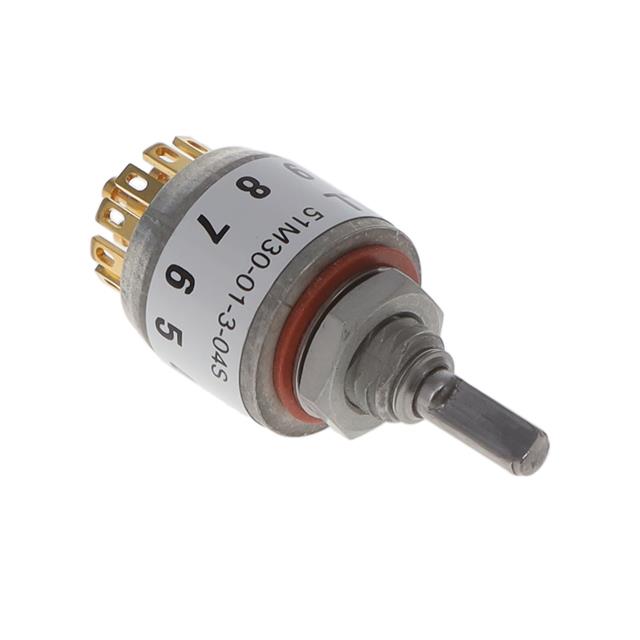

SWITCH ROTARY 3P4T 4 FLATTED SHAFT SOLDER LUG 0.2A 220VAC 28VDC

Deep-Dive with AI

Search across all available documentation for this part.

51M30-01-3-04S

Active

Grayhill Inc.

SWITCH ROTARY 3P4T 4 FLATTED SHAFT SOLDER LUG 0.2A 220VAC 28VDC

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	51M30-01-3-04S

Actuator Length [x]	9.53 mm
Actuator Type	Flatted
Actuator Type [diameter]	3.17 mm
Angle of Throw	30 °
Circuit per Deck	3P4T
Contact Finish	Gold
Contact Timing	Shorting
Current Rating (Amps)	200 mA, 150 mA
Depth Behind Panel [z]	18.77 mm
Index Stops	Fixed
Number of Decks [custom]	1
Number of Poles per Deck	3
Number of Positions	4
Termination Style	Solder Lug
Voltage Rating - AC	115 V
Voltage Rating - DC	28 V

51M30 Series

Part	Voltage Rating - DC	Contact Timing	Termination Style	Contact Finish	Depth Behind Panel [z]	Actuator Length [x]	Number of Poles per Deck	Voltage Rating - AC	Angle of Throw	Number of Positions	Current Rating (Amps)	Number of Decks [custom]	Index Stops	Actuator Type [diameter]	Actuator Type	Circuit per Deck	Circuit per Deck [custom]	Circuit per Deck [custom]
Grayhill Inc. 51M30-01-3-02N	28 V	Non-Shorting	Solder Lug	Gold	18.77 mm	9.53 mm	3	115 V	30 °	2	150 mA 200 mA	1	Fixed	3.17 mm	Flatted
Grayhill Inc. 51M30-01-1-04N	28 V	Non-Shorting	Solder Lug	Gold	18.77 mm	9.53 mm	1	115 V	30 °	4	150 mA 200 mA	1	Fixed	3.17 mm	Flatted	SP4T
Grayhill Inc. 51M30-01-4-02S	28 V	Shorting	Solder Lug	Gold	18.77 mm	9.53 mm		115 V	30 °	2	150 mA 200 mA	1	Fixed	3.17 mm	Flatted		4PDT
Grayhill Inc. 51M30-01-3-04S	28 V	Shorting	Solder Lug	Gold	18.77 mm	9.53 mm	3	115 V	30 °	4	150 mA 200 mA	1	Fixed	3.17 mm	Flatted	3P4T
Grayhill Inc. 51M30-01-1-07N	28 V	Non-Shorting	Solder Lug	Gold	18.77 mm	9.53 mm	1	115 V	30 °	7	150 mA 200 mA	1	Fixed	3.17 mm	Flatted	SP7T
Grayhill Inc. 51M30-01-1-08S	28 V	Shorting	Solder Lug	Gold	18.77 mm	9.53 mm	1	115 V	30 °	8	150 mA 200 mA	1	Fixed	3.17 mm	Flatted	SP8T
Grayhill Inc. 51M30-01-1-02N	28 V	Non-Shorting	Solder Lug	Gold	18.77 mm	9.53 mm	1	115 V	30 °	2	150 mA 200 mA	1	Fixed	3.17 mm	Flatted	SPDT
Grayhill Inc. 51M30-01-2-05N	28 V	Non-Shorting	Solder Lug	Gold	18.77 mm	9.53 mm	2	115 V	30 °		150 mA 200 mA	1	Fixed	3.17 mm	Flatted	DP5T
Grayhill Inc. 51M30-01-1-09N	28 V	Non-Shorting	Solder Lug	Gold	18.77 mm	9.53 mm	1	115 V	30 °	9	150 mA 200 mA	1	Fixed	3.17 mm	Flatted	SP9T
Grayhill Inc. 51M30-01-2-06N	28 V	Non-Shorting	Solder Lug	Gold	18.77 mm	9.53 mm	2	115 V	30 °	6	150 mA 200 mA	1	Fixed	3.17 mm	Flatted			DP6T

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 50.84
		5	$ 45.50
		10	$ 42.71
		25	$ 39.15
		50	$ 36.61
		100	$ 34.32
		250	$ 33.05

Description

General part information

51M30 Series

Rotary Switch 4 Position 3P4T 150mA (AC), 200mA (DC) 115 VAC Panel Mount

Documents

Technical documentation and resources

No documents available
