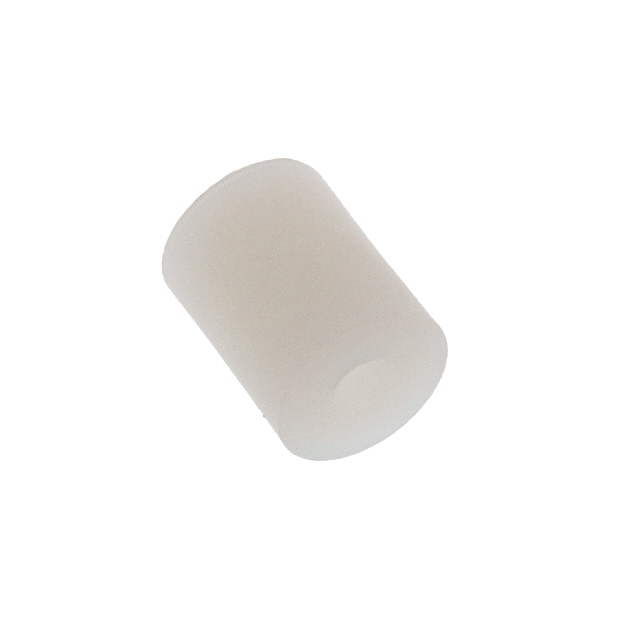

1125-2-N

Active

RAF Electronic Hardware

1/4 RD X 5/16 X .090 ID

Deep-Dive with AI

Search across all available documentation for this part.

1125-2-N

Active

RAF Electronic Hardware

1/4 RD X 5/16 X .090 ID

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1125-2-N

Between Board Height	7.94 mm
Between Board Height	0.313 "
Diameter - Inside [diameter]	0.09 in
Diameter - Inside [diameter]	2.29 mm
Diameter - Outside [diameter]	6.35 mm
Diameter - Outside [diameter]	0.25 in
Diameter - Outside [diameter]	0.25 in
Gender	Female
Length - Overall	7.94 mm
Length - Overall [x]	0.313 in
Material	Nylon
Threaded/Unthreaded	Unthreaded
Type	Round Spacer

1125 Series

Part	Between Board Height	Between Board Height	Between Board Height	Gender	Material	Threaded/Unthreaded	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Type	Length - Overall [x]	Length - Overall	Length - Overall	Color	Plating	Length - Overall [x]	Length - Overall [x]
RAF Electronic Hardware 1125-6-N	0.3125 in	7.95 mm	0.313 "	Female	Nylon	Unthreaded	0.14 in	3.56 mm	6.35 mm	0.25 in	0.25 in	Round Spacer	0.313 in	7.95 mm	0.3125 in
RAF Electronic Hardware 1125-4-N	0.3125 in	7.95 mm	0.313 "	Female	Nylon	Unthreaded	0.115 in	2.92 mm	6.35 mm	0.25 in	0.25 in	Round Spacer	0.313 in	7.95 mm	0.3125 in
RAF Electronic Hardware 1125-4-B-12		7.94 mm	0.313 "	Female	Brass	Unthreaded	0.115 in	2.92 mm	6.35 mm	0.25 in	0.25 in	Round Spacer	0.313 in	7.94 mm		Clear	Chromate Zinc
RAF Electronic Hardware 1125-2-N		7.94 mm	0.313 "	Female	Nylon	Unthreaded	0.09 in	2.29 mm	6.35 mm	0.25 in	0.25 in	Round Spacer	0.313 in	7.94 mm
RAF Electronic Hardware 1125-8-AL	0.3125 in	7.95 mm	0.313 "	Female	Aluminum	Unthreaded	0.166 in	4.22 mm	6.35 mm	0.25 in	0.25 in	Round Spacer	0.313 in	7.95 mm	0.3125 in
RAF Electronic Hardware 1125-6-B-12		7.94 mm	0.313 "	Female	Brass	Unthreaded	0.14 in	3.56 mm	6.35 mm	0.25 in	0.25 in	Round Spacer	0.313 in	7.94 mm		Clear	Chromate Zinc
RAF Electronic Hardware 1125T-6-AL		8.73 mm	0.344 "	Female	Aluminum	Unthreaded	0.14 in	3.56 mm	6.35 mm	0.25 in	0.25 in	Round Spacer						0.344 in	8.73 mm
RAF Electronic Hardware 1125-4-SS	0.3125 in	7.95 mm	0.313 "	Female	Stainless Steel	Unthreaded	0.115 in	2.92 mm	6.35 mm	0.25 in	0.25 in	Round Spacer	0.313 in	7.95 mm	0.3125 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.38
		5	$ 0.33
		10	$ 0.27
		25	$ 0.26
		50	$ 0.25
		100	$ 0.22
		250	$ 0.21
		500	$ 0.20

Description

General part information

1125 Series

Round Spacer Unthreaded Nylon 0.313" (7.94mm)

Documents

Technical documentation and resources

No documents available
