07145-6P

Active

Mechatronics Bearing Group

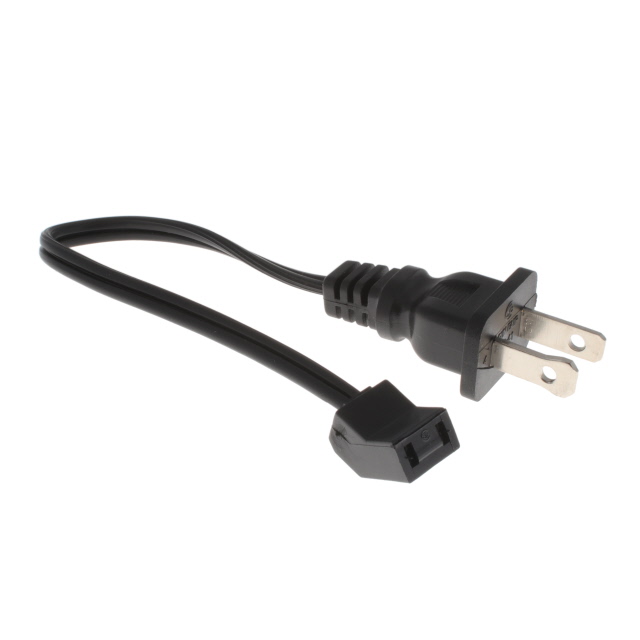

FAN CORD W/ WALL PLUG 6"

Search across all available documentation for this part.

Active

Mechatronics Bearing Group

FAN CORD W/ WALL PLUG 6"

Technical Specifications

Parameters and characteristics for this part

Specification	07145-6P

1st Connector	Fan Terminal Receptacle 45°
2nd Connector	Open Wires
Fits Terminal Size [x]	4.1
Fits Terminal Size [y]	0.5
Length	152.4 mm
Length	6 in
Number of Conductors	2
Operating Temperature	105 C
Style	Female Receptacle to Male Plug
Wire Gauge	18 AWG

Part	Length	Length	Wire Gauge	Operating Temperature	2nd Connector	1st Connector	Fits Terminal Size [x]	Fits Terminal Size [y]	Style	Number of Conductors	Length [x]	Length [x]
Mechatronics Bearing Group 07145-6P	152.4 mm	6 in	18 AWG	105 C	Open Wires	Fan Terminal Receptacle 45°	4.1	0.5	Female Receptacle to Male Plug	2
Mechatronics Bearing Group 07145-24P			18 AWG	105 C	NEMA 1-15 Plug	Fan Terminal Receptacle 45°	4.1	0.5	Female Receptacle to Male Plug	2	609.6 mm	24 in
Mechatronics Bearing Group 07145-36P	91.44 cm	36 in	18 AWG	105 C	NEMA 1-15 Plug	Fan Terminal Receptacle 45°	4.1	0.5	Female Receptacle to Male Plug	2
Mechatronics Bearing Group 07145-80	2.03 m	80 "	18 AWG	105 C	Open Wires	Fan Terminal Receptacle 45°	4.1	0.5	Female Receptacle to Cable	2
Mechatronics Bearing Group 07145-60P	1.52 m	5 '	18 AWG	105 C	NEMA 1-15 Plug	Fan Terminal Receptacle 45°	4.1	0.5	Female Receptacle to Male Plug	2
Mechatronics Bearing Group 07145-50	1270 mm	50 in	18 AWG	105 C	Open Wires	Fan Terminal Receptacle 45°	4.1	0.5	Female Receptacle to Cable	2
Mechatronics Bearing Group 07145-36	91.44 cm	36 in	18 AWG	105 C	Open Wires	Fan Terminal Receptacle 45°	4.1	0.5	Female Receptacle to Cable	2
Mechatronics Bearing Group 07145-60	1.52 m	5 '	18 AWG	105 C	Open Wires	Fan Terminal Receptacle 45°	4.1	0.5	Female Receptacle to Cable	2
Mechatronics Bearing Group 07145-12	304.8 mm		18 AWG	105 C	Open Wires	Fan Terminal Receptacle 45°	4.1	0.5	Female Receptacle to Cable	2		12 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Power Cord Fan Terminal Receptacle 45° 6.00" (152.4mm) Open Wires
