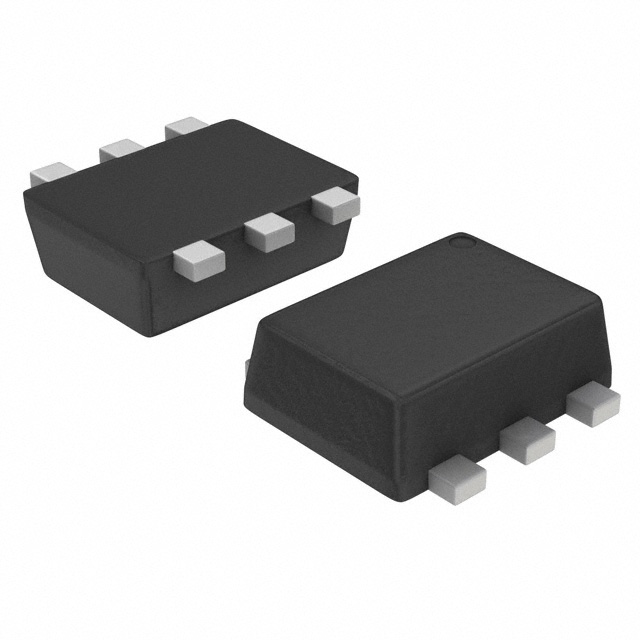

BAS16VTB6_R1_00001

Active

Panjit International Inc.

SURFACE MOUNT SWITCHING DIODE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BAS16VTB6_R1_00001

Active

Panjit International Inc.

SURFACE MOUNT SWITCHING DIODE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BAS16VTB6_R1_00001

Current - Average Rectified (Io) (per Diode)	150 mA
Current - Reverse Leakage @ Vr	2.5 µA
Diode Configuration	2 Independent
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SOT-666, SOT-563
Reverse Recovery Time (trr)	4 ns
Speed	Any Speed
Speed	200 mA
Supplier Device Package	SOT-563
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	75 V
Voltage - Forward (Vf) (Max) @ If [Max]	1.25 V

BAS16 Series

Part	Package / Case	Current - Average Rectified (Io)	Supplier Device Package	Speed	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Reverse Recovery Time (trr)	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr	Technology	Capacitance @ Vr, F	Current - Average Rectified (Io) (per Diode)	Voltage - Forward (Vf) (Max) @ If [Max]	Diode Configuration	Grade	Qualification
Panjit International Inc. BAS16TS_R1_00001	SC-79 SOD-523	125 mA	SOD-523	Any Speed	200 mA	75 V	Surface Mount	855 mV	6 ns	150 °C	-55 °C	1 µA	Standard
Panjit International Inc. BAS16_R1_00001	SC-59 SOT-23-3 TO-236-3	250 mA	SOT-23		200 mA 500 ns	75 V	Surface Mount	855 mV	6 ns	150 °C	-55 °C	1 µA	Standard	2 pF
Panjit International Inc. BAS16TW_R1_00001	6-TSSOP SC-88 SOT-363		SOT-363	Any Speed	200 mA	75 V	Surface Mount		4 ns	150 °C	-55 °C	2.5 µA	Standard		150 mA	1.25 V	3 Independent
Panjit International Inc. BAS16W-AU_R1_000A1	SC-70 SOT-323	150 mA	SOT-323	Any Speed	200 mA	75 V	Surface Mount	855 mV	6 ns	150 °C	-55 °C	1 µA	Standard	2 pF				Automotive	AEC-Q101
Panjit International Inc. BAS16TS-AU_R1_000A1	SC-79 SOD-523	125 mA	SOD-523	Any Speed	200 mA	75 V	Surface Mount	855 mV	6 ns	150 °C	-55 °C	1 µA	Standard					Automotive	AEC-Q101
Panjit International Inc. BAS16VTB6_R1_00001	SOT-563 SOT-666		SOT-563	Any Speed	200 mA	75 V	Surface Mount		4 ns	150 °C	-55 °C	2.5 µA	Standard		150 mA	1.25 V	2 Independent
Panjit International Inc. BAS16-AU_R1_000A1	SC-59 SOT-23-3 TO-236-3	250 mA	SOT-23		200 mA 500 ns	75 V	Surface Mount	855 mV	6 ns	150 °C	-55 °C	1 µA	Standard	2 pF				Automotive	AEC-Q101
Panjit International Inc. BAS16TW-AU_R1_000A1	6-TSSOP SC-88 SOT-363		SOT-363	Any Speed	200 mA	100 V	Surface Mount		4 ns	150 °C	-55 °C	2.5 µA	Standard		150 mA	1.25 V	3 Independent	Automotive	AEC-Q101
Panjit International Inc. BAS16W_R1_00001	SC-70 SOT-323	150 mA	SOT-323	Any Speed	200 mA	75 V	Surface Mount	855 mV	6 ns	150 °C	-55 °C	1 µA	Standard	2 pF
