LP8720TLE-B/NOPB
ActiveNational Semiconductor
POWER SUPPLY SUPPORT CIRCUIT, AD
Deep-Dive with AI
Search across all available documentation for this part.
LP8720TLE-B/NOPB
ActiveNational Semiconductor
POWER SUPPLY SUPPORT CIRCUIT, AD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LP8720TLE-B/NOPB |
|---|---|
| Frequency - Switching | 2 MHz |
| Mounting Type | Surface Mount |
| Number of Outputs | 6 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

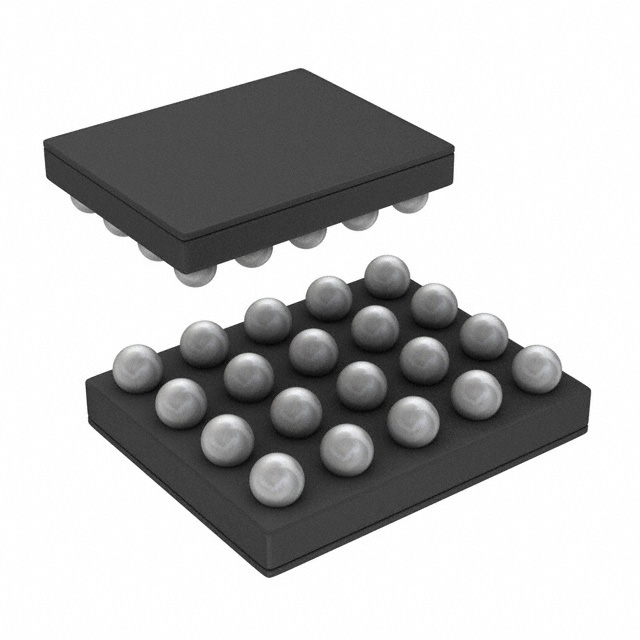

| Package / Case | 20-WFBGA |
| Supplier Device Package | 20-uSMD |
| Topology | Linear (LDO) (5), Step-Down (Buck) Synchronous (1) |
| Voltage - Supply [Max] | 4.5 V |
| Voltage - Supply [Min] | 2.7 V |
| Voltage/Current - Output 1 | 400 mA |
| Voltage/Current - Output 1 [Max] | 2.3 V |
| Voltage/Current - Output 1 [Min] | 0.8 V |
| Voltage/Current - Output 2 | 300 mA |
| Voltage/Current - Output 2 [Max] | 3.3 V |
| Voltage/Current - Output 2 [Min] | 1.2 V |
| Voltage/Current - Output 3 | 300 mA |
| Voltage/Current - Output 3 [Max] | 3.3 V |
| Voltage/Current - Output 3 [Min] | 1.2 V |
| w/LED Driver | False |
| w/Sequencer | True |
| w/Supervisor | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 250 | $ 1.52 | |
Description
General part information
LP8720 Series
PMIC - Voltage Regulators - Linear Switching 6 Output Step-Down (Buck) Synchronous (1), Linear (LDO) (5) 2MHz 20-uSMD
Documents
Technical documentation and resources
No documents available
