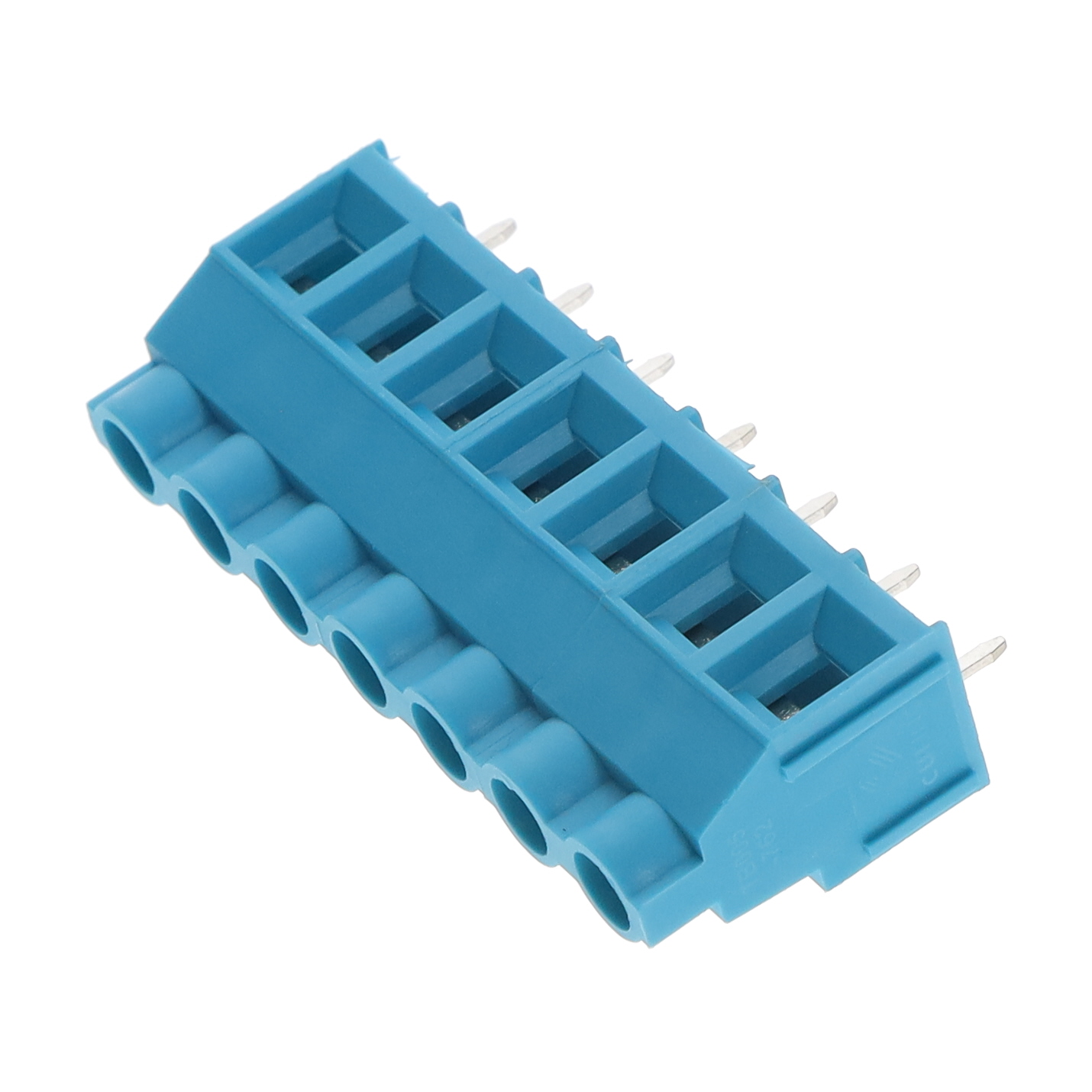

TB005-762-07BE

Active

CUI Devices

TERMINAL BLOCK, SCREW TYPE, 7.62

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TB005-762-07BE

Active

CUI Devices

TERMINAL BLOCK, SCREW TYPE, 7.62

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TB005-762-07BE

Clamp Material - Plating	Copper Alloy - Nickel Plated
Color	Blue
Contact Material - Plating	Copper Alloy - Tin Plated
Current	30 A
Features	Interlocking (Side)
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.3 in
Pitch [x]	7.62 mm
Positions Per Level	7
Screw Material - Plating	Steel, Zinc Plated
Screw Thread	M3
Torque - Screw	4.4 Lb-In
Torque - Screw	0.5 Nm
Voltage	300 V
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	10 AWG
Wire Termination	Screw - Rising Cage Clamp

TB005 Series

Part	Clamp Material - Plating	Voltage	Screw Material - Plating	Color	Torque - Screw	Torque - Screw	Operating Temperature [Min]	Operating Temperature [Max]	Positions Per Level	Wire Gauge [Min]	Wire Gauge [Max]	Number of Levels	Current	Screw Thread	Features	Contact Material - Plating	Pitch [x]	Pitch [x]	Wire Termination	Mating Orientation	Mounting Type
CUI Devices TB005-762-12BE	Copper Alloy - Nickel Plated	300 V	Steel Zinc Plated	Blue	4.4 Lb-In	0.5 Nm	-40 °C	105 ░C	12	10 AWG	26 AWG	1	30 A	M3	Interlocking (Side)	Copper Alloy - Tin Plated	0.3 in	7.62 mm	Screw - Rising Cage Clamp	Horizontal with Board	Through Hole
CUI Devices TB005-762-04BE	Copper Alloy - Nickel Plated	300 V	Steel Zinc Plated	Blue	4.4 Lb-In	0.5 Nm	-40 °C	105 ░C	4	10 AWG	26 AWG	1	30 A	M3	Interlocking (Side)	Copper Alloy - Tin Plated	0.3 in	7.62 mm	Screw - Rising Cage Clamp	Horizontal with Board	Through Hole
CUI Devices TB005-762-22BE	Copper Alloy - Nickel Plated	300 V	Steel Zinc Plated	Blue	4.4 Lb-In	0.5 Nm	-40 °C	105 ░C	22	10 AWG	26 AWG	1	30 A	M3	Interlocking (Side)	Copper Alloy - Tin Plated	0.3 in	7.62 mm	Screw - Rising Cage Clamp	Horizontal with Board	Through Hole
CUI Devices TB005-762-19BE	Copper Alloy - Nickel Plated	300 V	Steel Zinc Plated	Blue	4.4 Lb-In	0.5 Nm	-40 °C	105 ░C	19	10 AWG	26 AWG	1	30 A	M3	Interlocking (Side)	Copper Alloy - Tin Plated	0.3 in	7.62 mm	Screw - Rising Cage Clamp	Horizontal with Board	Through Hole
CUI Devices TB005-762-23BE	Copper Alloy - Nickel Plated	300 V	Steel Zinc Plated	Blue	4.4 Lb-In	0.5 Nm	-40 °C	105 ░C	23	10 AWG	26 AWG	1	30 A	M3	Interlocking (Side)	Copper Alloy - Tin Plated	0.3 in	7.62 mm	Screw - Rising Cage Clamp	Horizontal with Board	Through Hole
CUI Devices TB005-762-24BE	Copper Alloy - Nickel Plated	300 V	Steel Zinc Plated	Blue	4.4 Lb-In	0.5 Nm	-40 °C	105 ░C		10 AWG	26 AWG	1	30 A	M3	Interlocking (Side)	Copper Alloy - Tin Plated	0.3 in	7.62 mm	Screw - Rising Cage Clamp	Horizontal with Board	Through Hole
CUI Devices TB005-762-07BE	Copper Alloy - Nickel Plated	300 V	Steel Zinc Plated	Blue	4.4 Lb-In	0.5 Nm	-40 °C	105 ░C	7	10 AWG	26 AWG	1	30 A	M3	Interlocking (Side)	Copper Alloy - Tin Plated	0.3 in	7.62 mm	Screw - Rising Cage Clamp	Horizontal with Board	Through Hole
CUI Devices TB005-762-18BE	Copper Alloy - Nickel Plated	300 V	Steel Zinc Plated	Blue	4.4 Lb-In	0.5 Nm	-40 °C	105 ░C	18	10 AWG	26 AWG	1	30 A	M3	Interlocking (Side)	Copper Alloy - Tin Plated	0.3 in	7.62 mm	Screw - Rising Cage Clamp	Horizontal with Board	Through Hole
CUI Devices TB005-762-19BE	Copper Alloy - Nickel Plated	300 V	Steel Zinc Plated	Blue	4.4 Lb-In	0.5 Nm	-40 °C	105 ░C	19	10 AWG	26 AWG	1	30 A	M3	Interlocking (Side)	Copper Alloy - Tin Plated	0.3 in	7.62 mm	Screw - Rising Cage Clamp	Horizontal with Board	Through Hole
CUI Devices TB005-762-11BE	Copper Alloy - Nickel Plated	300 V	Steel Zinc Plated	Blue	4.4 Lb-In	0.5 Nm	-40 °C	105 ░C	11	10 AWG	26 AWG	1	30 A	M3	Interlocking (Side)	Copper Alloy - Tin Plated	0.3 in	7.62 mm	Screw - Rising Cage Clamp	Horizontal with Board	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 2.15
		10	$ 1.63
		25	$ 1.51
		50	$ 1.35
		100	$ 1.32
		250	$ 1.16
		645	$ 1.06
		1290	$ 0.96
		5160	$ 0.84

Description

General part information

TB005 Series

7 Position Wire to Board Terminal Block Horizontal with Board 0.300" (7.62mm) Through Hole
