EKB001N00320001000
ActiveTE Intercontec
CONN RCPT HSG MALE 12POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
EKB001N00320001000
ActiveTE Intercontec
CONN RCPT HSG MALE 12POS INLINE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EKB001N00320001000 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Fastening Type | Bayonet Lock |
| Features | Cable Clamp, Backshell |
| Housing Color | Green |

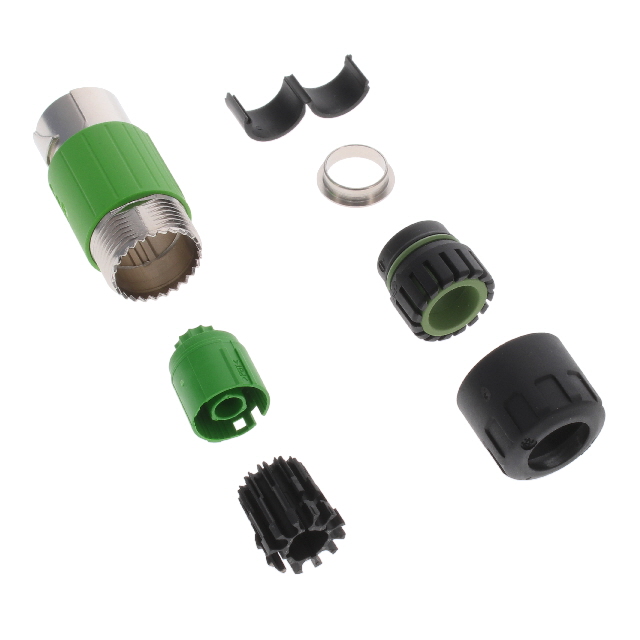

| Includes | 1 Nut, 1 EMI Ring, 1 Contact Housing, 1 Clip, 1 Grommet, 1 Shell Housing, 1 Contact Block |
| Ingress Protection | IP66/IP67 |
| Insert Material | Polybutylene Terephthalate (PBT), Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 12 |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -20 C |
| Orientation | Keyed |
| Shell Material | Zinc Die Cast |
| Shielding | Shielded |
| Type | For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 20.25 | |
| 10 | $ 17.74 | |||
| 30 | $ 16.97 | |||
| 60 | $ 16.42 | |||
| 120 | $ 15.88 | |||
| 270 | $ 15.00 | |||
| 510 | $ 14.56 | |||
Description
General part information
EKB00 Series
12 Position Circular Connector Receptacle Housing Free Hanging (In-Line) Backshell, Cable Clamp
