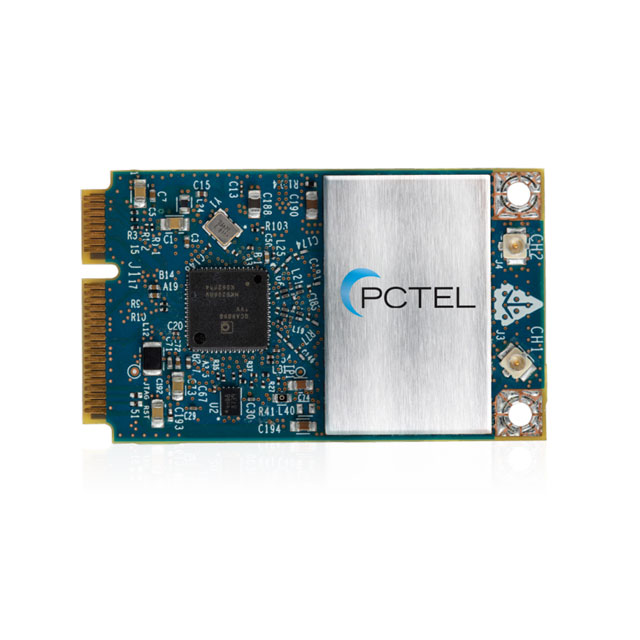

RM-WIFI-AC-2X2-HP-CA
ActiveAmphenol PCTEL
RF TXRX MOD WIFIU.FL CARD EDGE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RM-WIFI-AC-2X2-HP-CA
ActiveAmphenol PCTEL
RF TXRX MOD WIFIU.FL CARD EDGE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RM-WIFI-AC-2X2-HP-CA |
|---|---|
| Antenna Type | Antenna Not Included, U.FL |
| Data Rate | 867 Mbps |
| Frequency [Max] | 5.825 GHz |
| Frequency [Min] | 5.15 GHz |
| Modulation | 256-QAM |
| Mounting Type | Card Edge |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power - Output | 23 dBmW |
| Protocol | 802.11ac |
| RF Family/Standard | WiFi |
| Sensitivity | -92 dBm |
| Utilized IC / Part | QCA9898 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 89.61 | |
| 10 | $ 78.80 | |||
| 25 | $ 75.06 | |||
| 100 | $ 69.94 | |||
Description
General part information
RM-WIFI-AC Series
WiFi 802.11ac Transceiver Module 5.15GHz ~ 5.825GHz Antenna Not Included, U.FL Card Edge
Documents
Technical documentation and resources
