8843.8623.1

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

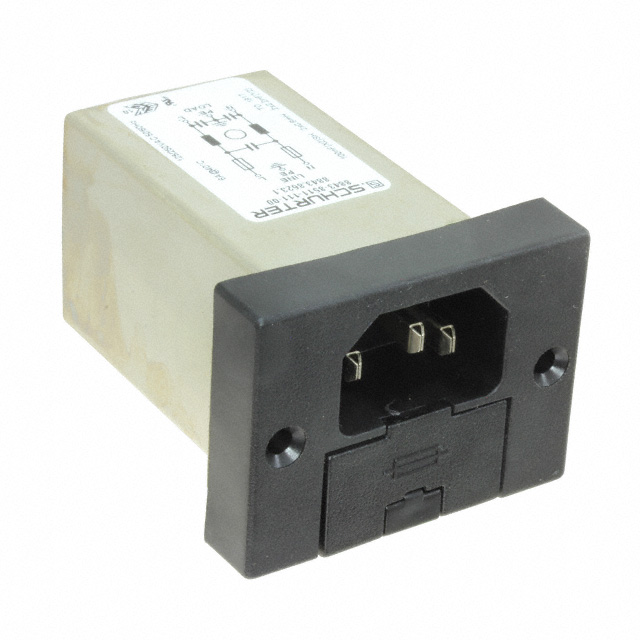

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	8843.8623.1

Accomodates a Fuse	True
Approval Agency	CSA, S+ MARK, UL, VDE, SEMKO
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	6 A
Current Rating - Filter	6 A
Features	Shielded
Filter Type	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Drawer Sold Separate, Twin Fused
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	33.3 mm
Panel Cutout Dimensions [y]	33.3 mm
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Voltage Rating - Appliance Inlet	Termination	Termination	Termination	Material Flammability Rating	Connector Type	Features	Fuse Holder, Drawer	Current Rating - Appliance Inlet	Filter Type	Current Rating - Filter	Mounting Type	Approval Agency	Accomodates a Fuse	Connector Style
SCHURTER Inc. 8843.8623.1	33.3 mm	33.3 mm	250 VAC	0.25 in	6.3 mm	Quick Connect	UL94 V-0	Receptacle Male Blades - Module	Shielded	Drawer Sold Separate Twin Fused	6 A	Filtered (EMI RFI) - Commercial	6 A	Flange Panel Mount	CSA S+ MARK SEMKO UL VDE		IEC 320-C14

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
