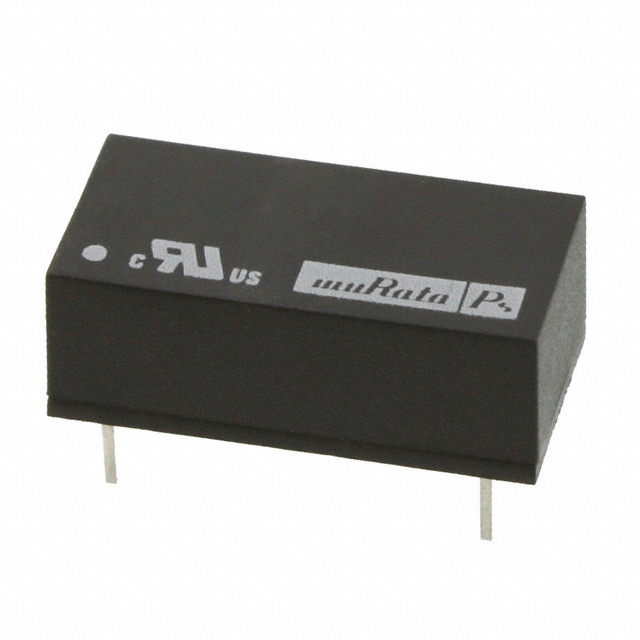

NKA0505DEC

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER +/-5V 1W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NKA0505DEC

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER +/-5V 1W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NKA0505DEC

Applications	ITE (Commercial)
Current - Output (Max)	100 mA
Current - Output (Max)	100 mA
Efficiency	80 %
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	14-DIP Module, 6 Leads
Size / Dimension [x]	19.5 mm
Size / Dimension [x]	0.77 in
Size / Dimension [y]	9.8 mm
Size / Dimension [y]	0.39 "
Size / Dimension [z]	5.4 mm
Size / Dimension [z]	0.21 in
Type	Isolated Module
Voltage - Input (Max) [Max]	5.5 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	3000 V
Voltage - Output 1	5 V
Voltage - Output 2	-5 V

NKA05 Series

Part	Voltage - Output 2	Package / Case	Mounting Type	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Applications	Type	Voltage - Input (Min) [Min]	Voltage - Output 1	Voltage - Input (Max) [Max]	Voltage - Isolation	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Current - Output (Max)	Current - Output (Max)
Murata Power Solutions Inc. NKA0512DC	-12 V	14-DIP Module 6 Leads	Through Hole	42 mA	42 mA	9.8 mm	19.5 mm	5.4 mm	0.77 in	0.39 "	0.21 in	ITE (Commercial)	Isolated Module	4.5 V	12 V	5.5 V	3000 V	2	85 °C	-40 °C	78 %
Murata Power Solutions Inc. NKA0512SC	-12 V	6-SIP Module 5 Leads	Through Hole	42 mA	42 mA	5.8 mm	16.5 mm	7.6 mm	0.65 in	0.23 in	0.3 "	ITE (Commercial)	Isolated Module	4.5 V	12 V	5.5 V	3000 V	2	85 °C	-40 °C	78 %
Murata Power Solutions Inc. NKA0505SC	-5 V	6-SIP Module 5 Leads	Through Hole			5.8 mm	16.5 mm	7.6 mm	0.65 in	0.23 in	0.3 "	ITE (Commercial)	Isolated Module	4.5 V	5 V	5.5 V	3000 V	2	85 °C	-40 °C	70 %	100 mA	100 mA
Murata Power Solutions Inc. NKA0505DC	-5 V	14-DIP Module 6 Leads	Through Hole			9.8 mm	19.5 mm	5.4 mm	0.77 in	0.39 "	0.21 in	ITE (Commercial)	Isolated Module	4.5 V	5 V	5.5 V	3000 V	2	85 °C	-40 °C	70 %	100 mA	100 mA
Murata Power Solutions Inc. NKA0505DEC	-5 V	14-DIP Module 6 Leads	Through Hole			9.8 mm	19.5 mm	5.4 mm	0.77 in	0.39 "	0.21 in	ITE (Commercial)	Isolated Module	4.5 V	5 V	5.5 V	3000 V	2	85 °C	-40 °C	80 %	100 mA	100 mA
Murata Power Solutions Inc. NKA0509SC	-9 V	6-SIP Module 5 Leads	Through Hole			5.8 mm	16.5 mm	7.6 mm	0.65 in	0.23 in	0.3 "	ITE (Commercial)	Isolated Module	4.5 V	9 V	5.5 V	3000 V	2	85 °C	-40 °C	76 %
Murata Power Solutions Inc. NKA0515SC	-15 V	6-SIP Module 5 Leads	Through Hole			5.8 mm	16.5 mm	7.6 mm	0.65 in	0.23 in	0.3 "	ITE (Commercial)	Isolated Module	4.5 V	15 V	5.5 V	3000 V	2	85 °C	-40 °C	79 %		33 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

NKA05 Series

Isolated Module DC DC Converter 2 Output 5V -5V 100mA, 100mA 4.5V - 5.5V Input
