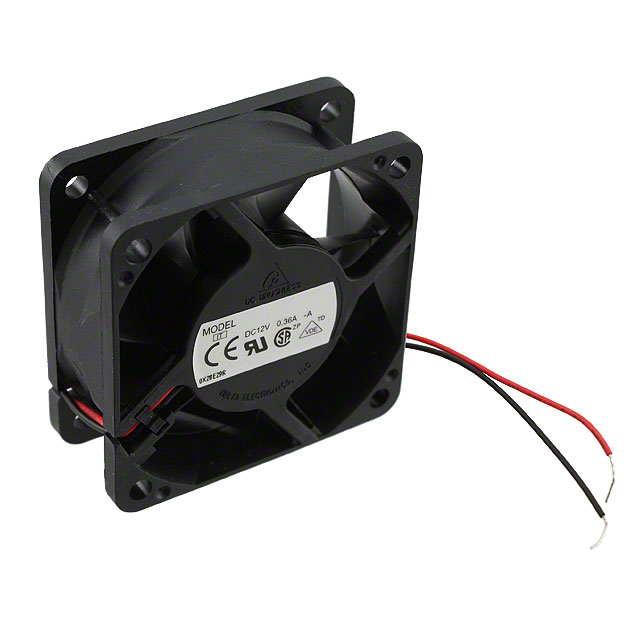

AUB0612VH-AIT

NRND

Delta Electronics

FAN AXIAL 60X25.4MM 12VDC

Search across all available documentation for this part.

NRND

Delta Electronics

FAN AXIAL 60X25.4MM 12VDC

Technical Specifications

Parameters and characteristics for this part

Part	Fan Type	Current Rating (Amps)	Weight	Weight	Approval Agency	RPM	Voltage - Rated	Noise	Size / Dimension [x]	Size / Dimension [y]	Static Pressure	Static Pressure	Material - Frame	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Width [y]	Material - Blade	Termination	Air Flow	Air Flow	Bearing Type	Power (Watts)	Weight	Voltage Range [Min]	Voltage Range [Max]	Width [x]
Delta Electronics AUB0612L-A	Tubeaxial	70 mA	0.134 lb	60.78 g	CE CSA UL VDE	3100 RPM	12 VDC	26.5 dB	60 mm	60 mm	0.1 in H2O	24.9 Pa	Plastic	50000 Hrs	-10 °C	-10 °C	60 °C	60 °C	25.4 mm	Plastic	2 Wire Leads	0.386 mł/min	13.8 CFM	Superflo	840 mW
Delta Electronics AUB0612VH-AIT	Tubeaxial	0.24 A	68.04 g		CE CSA UL VDE	5500 RPM	12 VDC	42.5 dB(A)	60 mm	60 mm	0.352 in H2O	87.7 Pa	Plastic	50000 Hrs	-10 °C	-10 °C	60 °C	60 °C	25.4 mm	Plastic	2 Wire Leads	0.82 m³/min	29.3 CFM	Superflo	2.88 W	0.15 lbs
Delta Electronics AUB0612HHB-A	Tubeaxial		38.1 g		CE CSA UL VDE	4500 RPM	12 VDC	33 dB(A)	60 mm	60 mm	0.19 in H2O	47.3 Pa	Plastic	50000 Hrs	-10 °C	-10 °C	60 °C	60 °C		Plastic	2 Wire Leads	0.655 m³/min	23.4 CFM	Superflo	1.56 W	0.084 lb	7 V	13.8 VDC	15 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Superflo 29.3 CFM (0.820m³/min) 2 Wire Leads
