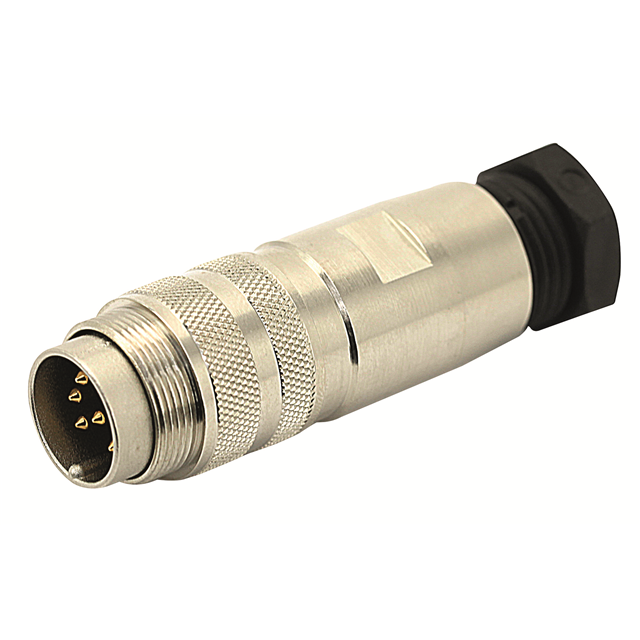

C091 11H014 001 2

Active

Amphenol Sine Systems Corp

MALE CABLE CONNECTOR WITH INTERN

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

MALE CABLE CONNECTOR WITH INTERN

Technical Specifications

Parameters and characteristics for this part

Specification	C091 11H014 001 2

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1 mm
Contact Type	Crimp
Features	Cable Clamp, Coupling Nut, Backshell
Housing Color	Silver
Ingress Protection	IP67, IP65
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	14
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M16-14
Shielding	Shielded
Type	For Male Pins

Part	Orientation	Contact Size	Contact Type	Material Flammability Rating	Ingress Protection	Shell Finish	Number of Positions	Housing Color	Insert Material	Contact Shape	Mounting Type	Connector Type	Type	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Shell Material	Note	Shell Size - Insert	Features
Amphenol Sine Systems Corp C091 11H014 001 2	Keyed	1 mm	Crimp	UL94 V-0	IP65 IP67	Nickel	14	Silver	Thermoplastic	Circular	Free Hanging (In-Line)	Plug Housing	For Male Pins	100 °C	-40 °C	Shielded	Zinc Die Cast	Contacts Not Included	M16-14	Backshell Cable Clamp Coupling Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 11.94

General part information

14 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut
