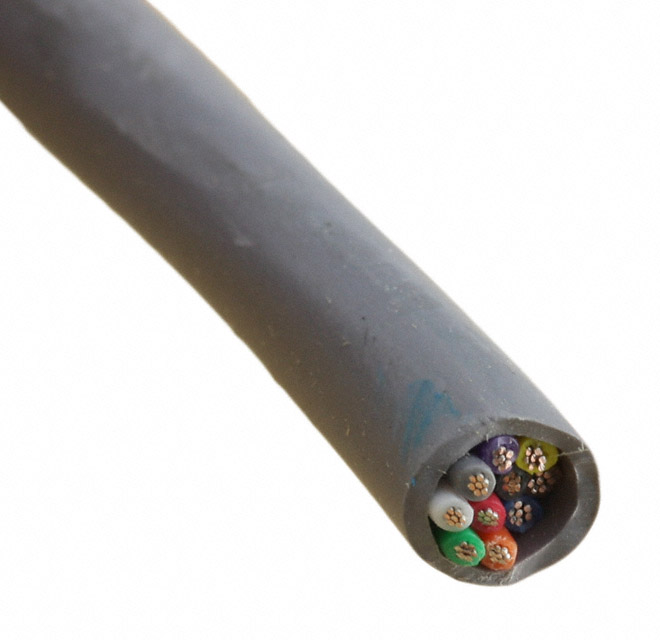

1896/10C SL002

Active

ALPHA WIRE

CABLE 10COND 20AWG SLATE

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 10COND 20AWG SLATE

Technical Specifications

Parameters and characteristics for this part

Specification	1896/10C SL002

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	8.13 mm
Jacket (Insulation) Diameter [diameter]	0.32 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Jacket Color	Slate
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	10
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	300 V
Wire Gauge	20 AWG

Part	Usage	Cable Type	Wire Gauge	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Number of Conductors	Voltage	Conductor Material	Length	Length
ALPHA WIRE 1896/10C SL002	Communication Control	Multi-Conductor	20 AWG	500 '	152.4 m	28	7	Slate	Poly-Vinyl Chloride (PVC)	8.13 mm	0.32 in	-20 C	80 C	0.02 in	0.508 mm	Poly-Vinyl Chloride (PVC)	10	300 V	Copper Tinned
ALPHA WIRE 1896/10C SL001	Communication Control	Multi-Conductor	20 AWG			28	7	Slate	Poly-Vinyl Chloride (PVC)	8.13 mm	0.32 in	-20 C	80 C	0.02 in	0.508 mm	Poly-Vinyl Chloride (PVC)	10	300 V	Copper Tinned	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 1.96

General part information

10 Conductor Multi-Conductor Cable Slate 20 AWG 500.0' (152.4m)
