09338006204 - 09330006204

09338006204

Active

HARTING Technology Group

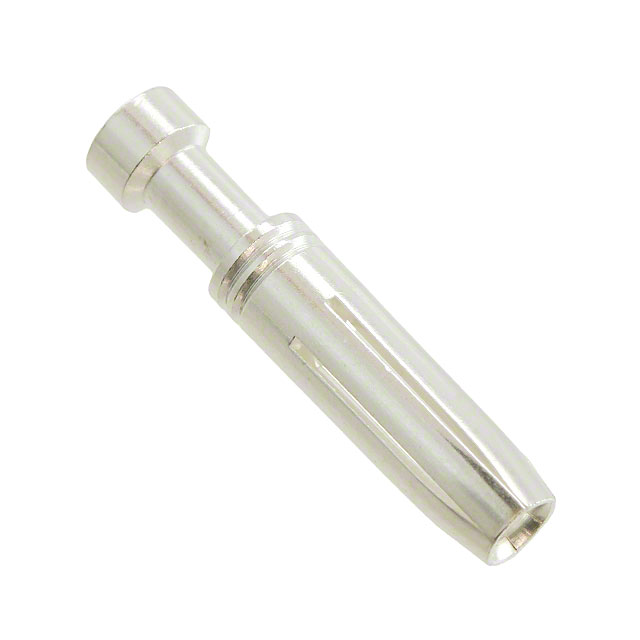

HAN E FEMALE CONTACT AWG 16 (1.5MM2), SILVER - HIGH TEMP VERSION

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

09338006204 - 09330006204

09338006204

Active

HARTING Technology Group

HAN E FEMALE CONTACT AWG 16 (1.5MM2), SILVER - HIGH TEMP VERSION

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09338006204

Contact Finish	Silver
Contact Termination	Crimp
Pin or Socket	Socket
Type	Machined
Wire Gauge	16 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.96
		10	$ 2.05
		25	$ 1.79
		50	$ 1.63
		100	$ 1.49
		250	$ 1.33
		500	$ 1.23
		1000	$ 1.14
		2500	$ 1.04
Newark	Each	100	$ 1.43
		250	$ 1.30
		500	$ 1.19
		1000	$ 1.02

Description

General part information

09338006 Series

Contact Crimp Socket 16 AWG Silver

Documents

Technical documentation and resources

Datasheet

09338006 Series

Part	Housing Material	Number of Positions	Current Rating (Amps)	Gender	Voltage Rating	Termination Style	Size	Type	Contact Termination	Pin or Socket	Wire Gauge	Contact Finish	Contact Type	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]
HARTING Technology Group 09338062603	Liquid Crystal Polymer (LCP)	6+Ground	16 A	Male	500 V	Screw	6B
HARTING Technology Group 09338006121								Machined	Crimp	Pin	20 AWG	Silver
HARTING Technology Group 09338062703	Liquid Crystal Polymer (LCP)	6+Ground	16 A	Female	500 V	Screw	6B
HARTING Technology Group 09338062704	Liquid Crystal Polymer (LCP)	6+Ground	16 A	Female	500 V	Crimp	6B						Han® High Temp	Insert without Contacts
HARTING Technology Group 09338006104								Machined	Crimp	Pin	16 AWG	Silver
HARTING Technology Group 09338006220								Machined	Crimp	Socket	20 AWG	Silver
HARTING Technology Group 09338062602	Liquid Crystal Polymer (LCP)	6+Ground	16 A	Male	400 V	Crimp	6B						Han® E	Insert without Contacts	200 °C	-40 °C
HARTING Technology Group 09338006204								Machined	Crimp	Socket	16 AWG	Silver
