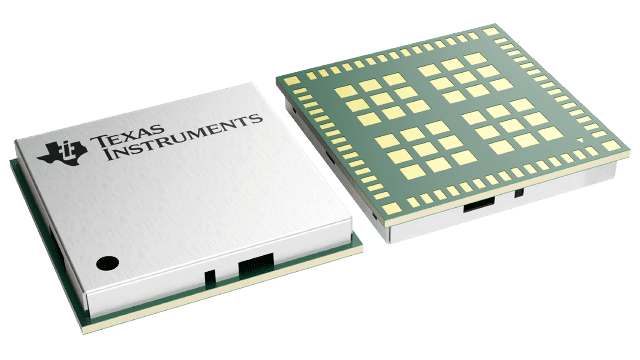

WL1835MODGBMOCR
ActiveWILINK™ 8 SINGLE BAND COMBO 2X2 MIMO WI-FI®, BLUETOOTH® & BLUETOOTH SMART MODULE
Deep-Dive with AI
Search across all available documentation for this part.
WL1835MODGBMOCR
ActiveWILINK™ 8 SINGLE BAND COMBO 2X2 MIMO WI-FI®, BLUETOOTH® & BLUETOOTH SMART MODULE
Technical Specifications
Parameters and characteristics for this part
| Specification | WL1835MODGBMOCR |
|---|---|
| Current - Receiving [Max] | 85 mA |
| Current - Receiving [Min] | 49 mA |
| Current - Transmitting [Max] | 420 mA |
| Current - Transmitting [Min] | 238 mA |
| Data Rate | 54 Mbps |
| Frequency | 2.4 GHz |
| Modulation | CCK, GFSK, OFDM, DSSS |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | Module |
| Power - Output | 17.3 dBm |
| Protocol | 802.11b/g/n, Bluetooth 4.2 |
| RF Family/Standard | WiFi, Bluetooth |
| Sensitivity | -96.3 dBm |
| Serial Interfaces | SDIO, UART |
| Voltage - Supply [Max] | 4.8 V |
| Voltage - Supply [Min] | 2.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 21.19 | |
| 10 | $ 19.17 | |||
| 25 | $ 17.66 | |||
| 100 | $ 16.14 | |||
| 250 | $ 15.13 | |||
| 500 | $ 14.13 | |||
| Digi-Reel® | 1 | $ 21.19 | ||
| 10 | $ 19.17 | |||
| 25 | $ 17.66 | |||
| 100 | $ 16.14 | |||
| 250 | $ 15.13 | |||
| 500 | $ 14.13 | |||
| Tape & Reel (TR) | 1200 | $ 13.42 | ||
| Texas Instruments | LARGE T&R | 1 | $ 16.58 | |
| 100 | $ 14.49 | |||
| 250 | $ 11.17 | |||
| 1000 | $ 9.99 | |||
Description
General part information
WL1835MOD Series
The certified WiLink™ 8 module from TI offers high throughput and extended range along with Wi-Fi®andBluetooth®coexistence (WL1835MOD only) in a power-optimized design. The WL18x5MOD device is a 2.4-GHz module, two antenna solution. The device is FCC, IC, ETSI/CE, and TELEC certified for AP and client. TI offers drivers for high-level operating systems such as Linux and Android™. Additional drivers, such as WinCE and RTOS, which includes QNX, Nucleus, ThreadX, and FreeRTOS, are supported through third parties.
The certified WiLink™ 8 module from TI offers high throughput and extended range along with Wi-Fi®andBluetooth®coexistence (WL1835MOD only) in a power-optimized design. The WL18x5MOD device is a 2.4-GHz module, two antenna solution. The device is FCC, IC, ETSI/CE, and TELEC certified for AP and client. TI offers drivers for high-level operating systems such as Linux and Android™. Additional drivers, such as WinCE and RTOS, which includes QNX, Nucleus, ThreadX, and FreeRTOS, are supported through third parties.
