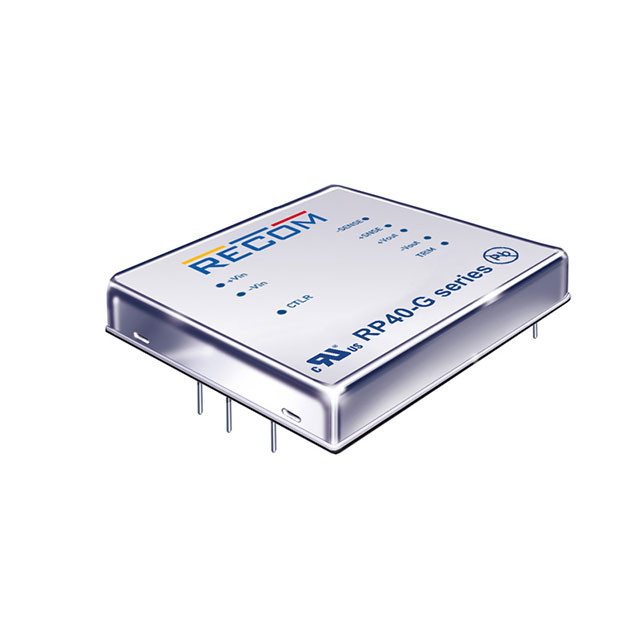

RP40-480512TG

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 40W DC/DC 1.6KV 2:1 36-75IN 5/+/-12OUT

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RP40-480512TG

Applications	ITE (Commercial)
Control Features	Active High, Enable
Efficiency	88 %
Features	OVP, UVLO, OCP, Remote On/Off, SCP
Mounting Type	Through Hole
Number of Outputs	3
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	9-DIP Module
Power (Watts)	40 W
Size / Dimension [x]	50.8 mm
Size / Dimension [x]	2 in
Size / Dimension [y]	50.8 mm
Size / Dimension [y]	2 in
Size / Dimension [z]	10.2 mm
Size / Dimension [z]	0.4 "
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	1.6 kV
Voltage - Output 1	5 V
Voltage - Output 2	12 V
Voltage - Output 3	-12 V

RP40-480515 Series

Isolated DC/DC Converters - Through Hole 40W DC/DC 1.6kV REG 2:1 18-36in +/-15out

Part	Voltage - Input (Min) [Min]	Features	Efficiency	Number of Outputs	Voltage - Output 3	Applications	Voltage - Input (Max) [Max]	Mounting Type	Control Features	Voltage - Output 2	Package / Case	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Type	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Power (Watts)	Current - Output (Max) [Max]	Supplier Device Package	Current - Output (Max)
RECOM Power RP40-480512TG	36 V	OCP OVP Remote On/Off SCP UVLO	88 %	3	-12 V	ITE (Commercial)	75 V	Through Hole	Active High Enable	12 V	9-DIP Module	10.2 mm	50.8 mm	2 in	0.4 "	50.8 mm	2 in	Isolated Module	5 V	85 °C	-40 °C	1.6 kV	40 W
RECOM Power RP40-243.3SG	18 V	OCP OVP Remote On/Off SCP UVLO	87 %	1		ITE (Commercial)	36 V	Through Hole	Active High Enable		9-DIP Module	10.2 mm	50.8 mm	2 in	0.4 "	50.8 mm	2 in	Isolated Module	3.3 V	85 °C	-40 °C	1.6 kV	40 W	8 A
RECOM Power RP40-1215SG-HC	9 V	OCP OVP Remote On/Off SCP UVLO	87 %	1		ITE (Commercial)	18 V	Through Hole	Active High Enable		9-DIP Module	10.2 mm	50.8 mm	2 in	0.4 "	50.8 mm	2 in	Isolated Module	15 V	85 °C	-40 °C	1.6 kV	40 W	2.67 A
RECOM Power RP40-4805SG-HC	36 V	OCP OVP Remote On/Off SCP UVLO	90 %	1		ITE (Commercial)	75 V	Through Hole	Active High Enable		9-DIP Module	10.2 mm	50.8 mm	2 in	0.4 "	50.8 mm	2 in	Isolated Module	5 V	85 °C	-40 °C	1.6 kV	40 W	8 A
RECOM Power RP40-243.3SFR/P-HC	9 V	OCP OTP OVP Remote On/Off SCP UVLO	90 %	1		ITE (Commercial) Railway	36 V	Through Hole	Active High Enable		6-DIP Module	16.8 mm	25.4 mm	25.4 mm	0.66 in	56.8 mm	2.24 "	Isolated Module	3.3 V	105 C	-40 °C	1.6 kV	33 W	10 A	6-DIP Module
RECOM Power RP40-4815DG-HC	36 V	OCP OVP Remote On/Off SCP UVLO	87 %	2		ITE (Commercial)	75 V	Through Hole	Active High Enable	-15 V	9-DIP Module	10.2 mm	50.8 mm	2 in	0.4 "	50.8 mm	2 in	Isolated Module	15 V	85 °C	-40 °C	1.6 kV	40 W			1.4 A
RECOM Power RP40-243.3SGW/N-HC	9 V	OCP OTP OVP Remote On/Off SCP UVLO	86 %	1		ITE (Commercial)	36 V	Through Hole	Active Low Enable		8-DIP Module	10.2 mm	50.8 mm	2 in	0.4 "	50.8 mm	2 in	Isolated Module	3.3 V	55 °C	-40 °C	1.6 kV	40 W	10 A
RECOM Power RP40-2405SFR/N-HC	9 V	OCP OTP OVP Remote On/Off SCP UVLO	91 %	1		ITE (Commercial) Railway	36 V	Through Hole	Active Low Enable		6-DIP Module	16.8 mm	25.4 mm	25.4 mm	0.66 in	56.8 mm	2.24 "	Isolated Module	5 V	105 C	-40 °C	1.6 kV	40 W	8 A	6-DIP Module
RECOM Power RP40-1205SG	9 V	OCP OVP Remote On/Off SCP UVLO	86 %	1		ITE (Commercial)	18 V	Through Hole	Active High Enable		9-DIP Module	10.2 mm	50.8 mm	2 in	0.4 "	50.8 mm	2 in	Isolated Module	5 V	85 °C	-40 °C	1.6 kV	40 W	8 A
RECOM Power RP40-243.3SFR/P	9 V	OCP OTP OVP Remote On/Off SCP UVLO	90 %	1		ITE (Commercial) Railway	36 V	Through Hole	Active High Enable		6-DIP Module	10.2 mm	25.4 mm	25.4 mm	0.4 "	50.8 mm	2 in	Isolated Module	3.3 V	105 C	-40 °C	1.6 kV	33 W	10 A	6-DIP Module
