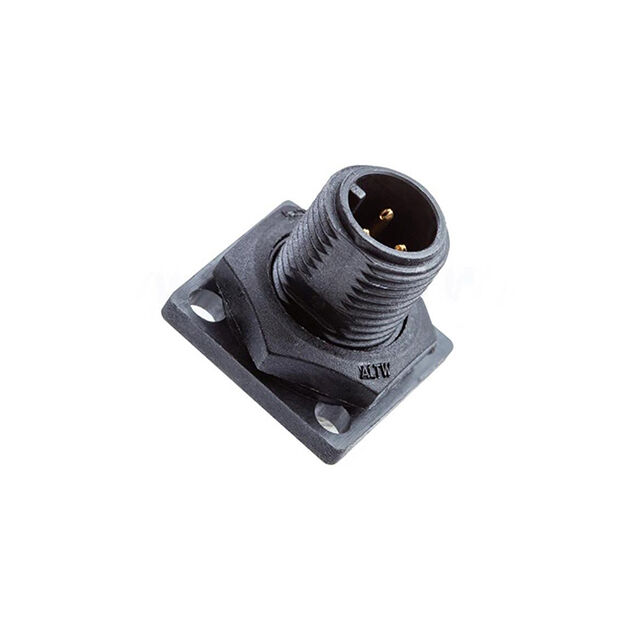

AD-03PMMP-SC7001

Active

Amphenol LTW

CERES, MINI SIZE, 5A, 03 PINS, RECEPTACLE, CIRCULAR ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol LTW

CERES, MINI SIZE, 5A, 03 PINS, RECEPTACLE, CIRCULAR ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	AD-03PMMP-SC7001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	A
Shielding	Unshielded
Termination	Solder
Voltage Rating	250 VDC

Part	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Shielding	Mounting Feature	Orientation	Primary Material	Connector Type	Mounting Type	Voltage Rating	Contact Material	Current Rating (Amps)	Termination	Color	Shell Size - Insert	Shell Material	Insert Material	Fastening Type
Amphenol LTW AD-03PMMP-SS7001	IP67 - Dust Tight Waterproof	-40 °C	105 ░C	Gold	Unshielded	Flange	Keyed	Plastic	Male Pins Receptacle	Panel Mount Through Hole	250 VDC	Copper Alloy	5 A	Solder	Black	A	Glass Filled Nylon Polyamide (PA)	Polyamide (PA) Nylon Glass Filled
Amphenol LTW AD-03PMMP-SC7001	IP67 - Dust Tight Waterproof	-40 °C	105 ░C	Gold	Unshielded	Bulkhead - Front Side Nut	Keyed	Plastic	Male Pins Receptacle	Panel Mount Through Hole	250 VDC	Copper Alloy	5 A	Solder	Black	A	Glass Filled Nylon Polyamide (PA)	Polyamide (PA) Nylon Glass Filled
Amphenol LTW AD-03PMMP-LS7001	IP67 - Dust Tight Waterproof	-40 °C	105 ░C	Gold	Unshielded	Flange	Keyed	Plastic	Male Pins Receptacle	Panel Mount Through Hole	250 VDC	Copper Alloy	5 A	Solder	Black	A	Glass Filled Nylon Polyamide (PA)	Polyamide (PA) Nylon Glass Filled	Bayonet Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Male Pins Solder
