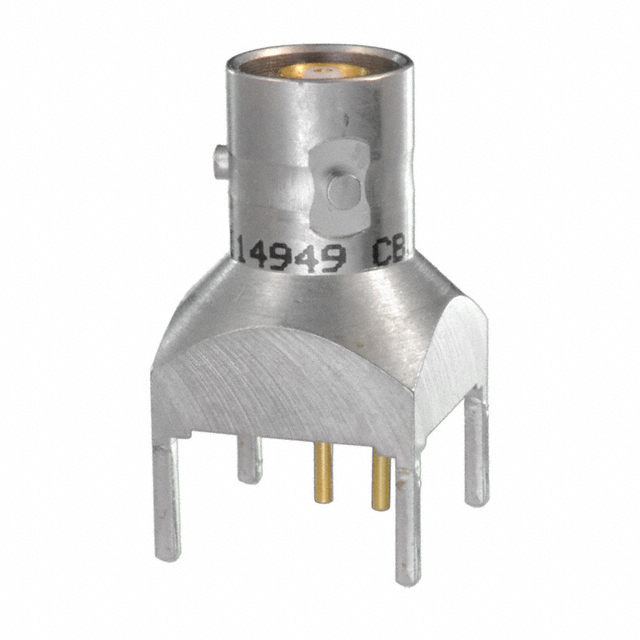

CBJ157
ActiveCinch Connectivity Solutions Trompeter
CONN TRS JACK STR PCB
Deep-Dive with AI
Search across all available documentation for this part.
CBJ157
ActiveCinch Connectivity Solutions Trompeter
CONN TRS JACK STR PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CBJ157 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | Triaxial, TRS |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Fastening Type | Bayonet Lock |
| Features | Three Lug |
| Frequency - Max [Max] | 500 MHz |
| Housing Color | Silver |
| Impedance | Non-Constant |
| Mating Cycles | 500 |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 45.75 | |
| 10 | $ 41.98 | |||
| 30 | $ 40.68 | |||
Description
General part information
CBJ Series
TRS, Triaxial Connector Jack, Female Socket Non-Constant Through Hole Solder
