CI1104M1HR0-NH

Active

Cvilux USA

4POS 1.00MM(.039) SINGLE ROW RIG

Search across all available documentation for this part.

Active

Cvilux USA

4POS 1.00MM(.039) SINGLE ROW RIG

Technical Specifications

Parameters and characteristics for this part

Specification	CI1104M1HR0-NH

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	0.069 in
Contact Length - Mating	1.75 mm
Contact Material	Phosphor Bronze
Contact Shape	Rectangular
Contact Type	Male Pin
Fastening Type	Detent Lock
Features	Solder Retention
Insulation Color	Natural
Insulation Height	2.95 mm
Insulation Height	0.116 in
Insulation Material	Polyamide (PA6T), Nylon 6T, Glass Filled, Halogen Free
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 VAC

Part	Voltage Rating	Fastening Type	Mounting Type	Material Flammability Rating	Contact Shape	Connector Type	Number of Rows	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Number of Positions Loaded	Contact Finish - Post	Style	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Material	Features	Termination	Contact Type	Insulation Material
Cvilux USA CI1104M1HR0-NH	50 VAC	Detent Lock	Surface Mount Right Angle	UL94 V-0	Rectangular	Header	1	0.069 in	1.75 mm	2.95 mm	0.116 in	Shrouded - 4 Wall	2.54 çm	100 çin	4	All	Tin	Board to Cable/Wire	-25 °C	85 °C	2.54 µm	100 µin	0.039 in	1 mm	Natural	Phosphor Bronze	Solder Retention	Solder	Male Pin	Polyamide (PA6T) Nylon 6T Glass Filled Halogen Free

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

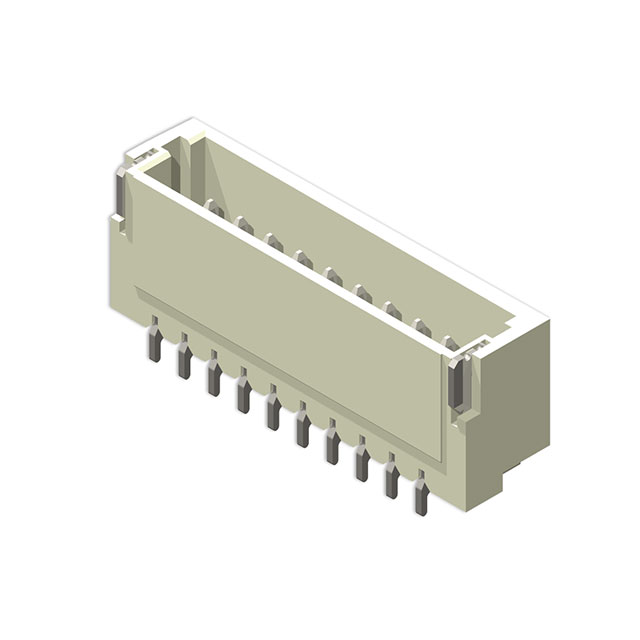

Connector Header Surface Mount, Right Angle 4 position 0.039" (1.00mm)
