UCD9222RGZT
ActiveDUAL PHASE DIGITAL PWM BUCK CONTROLLER WITH 4/6/8-BIT PARALLEL VID
Deep-Dive with AI
Search across all available documentation for this part.
UCD9222RGZT
ActiveDUAL PHASE DIGITAL PWM BUCK CONTROLLER WITH 4/6/8-BIT PARALLEL VID
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UCD9222RGZT |
|---|---|
| Clock Sync | True |
| Control Features | Reset, Enable, Power Good, Tracking |
| Duty Cycle (Max) [Max] | 100 % |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Phases | 2 |
| Output Type | PWM Signal |

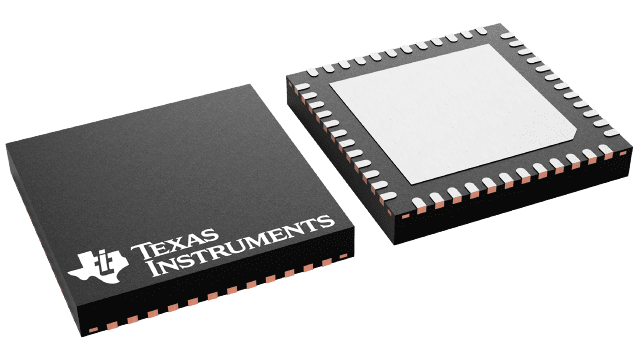

| Package / Case | 48-VFQFN Exposed Pad |
| Serial Interfaces | SMBus, I2C, PMBus |
| Supplier Device Package | 48-VQFN (7x7) |
| Synchronous Rectifier | False |
| Topology | Buck |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 8.57 | |
| 10 | $ 7.74 | |||
| 25 | $ 7.38 | |||
| 100 | $ 6.41 | |||
| Digi-Reel® | 1 | $ 8.57 | ||
| 10 | $ 7.74 | |||
| 25 | $ 7.38 | |||
| 100 | $ 6.41 | |||
| Tape & Reel (TR) | 250 | $ 4.46 | ||
| Texas Instruments | SMALL T&R | 1 | $ 6.56 | |
| 100 | $ 5.35 | |||
| 250 | $ 4.20 | |||
| 1000 | $ 3.56 | |||
Description
General part information
UCD9222-EP Series
The UCD9222 is a two-rail synchronous buck digital PWM controller designed for non-isolated DC/DC power applications. This device integrates dedicated circuitry for DC/DC loop management with support for up to two VID interfaces. Additionally, the UCD9222 has flash memory and a serial interface to support configurability, monitoring and management.
Several Voltage Identification (VID) modes are supported, including a 4-bit parallel interface, a 6-bit interface and an 8-bit serial interface.
The UCD9222 was designed to provide a wide variety of desirable features for non-isolated DC/DC converter applications while minimizing the total system component count by reducing external circuits. The solution integrates multi-loop management with sequencing, margining and tracking to optimize for total system efficiency. Additionally, loop compensation and calibration are supported without the need to add external components.
