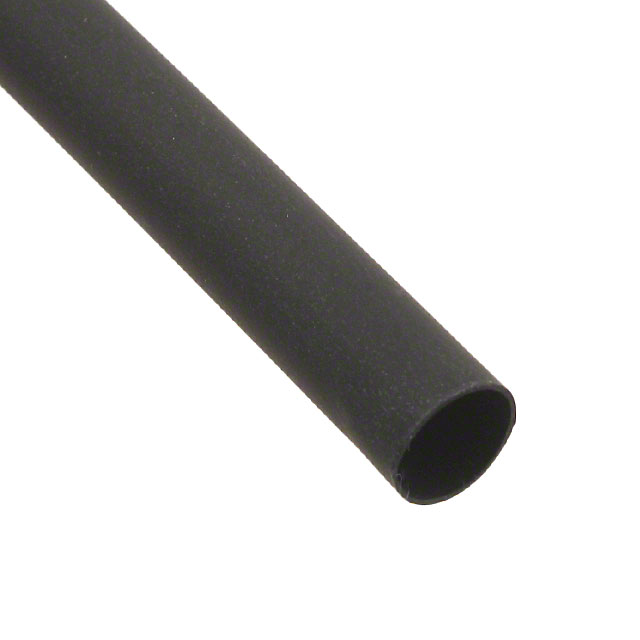

ST3033/8 BK103

Active

ALPHA WIRE

HEAT SHRINK TUBING ST IRRADIATED POLYOLEFIN BLACK DUAL

Search across all available documentation for this part.

Active

ALPHA WIRE

HEAT SHRINK TUBING ST IRRADIATED POLYOLEFIN BLACK DUAL

Technical Specifications

Parameters and characteristics for this part

Specification	ST3033/8 BK103

Color	Black
Features	Water Resistant, Fluid Resistant, Adhesive Lined, UV Resistant, Chemical Resistant, Abrasion Resistant, Heat Resistant
Inner Diameter - Recovered [diameter]	0.118 in
Inner Diameter - Recovered [diameter]	2.99 mm
Inner Diameter - Supplied [diameter]	0.374 in
Inner Diameter - Supplied [diameter]	9.5 mm
Length [x]	1.22 m
Length [x]	4 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.051 in
Recovered Wall Thickness	1.3 mm
Shelf Life	36 Months
Shelf Life Start	Date of Manufacture
Shrink Temperature	110 °C
Shrinkage Ratio [Max]	3
Shrinkage Ratio [Min]	1
Storage/Refrigeration Temperature [Max]	35 °C
Storage/Refrigeration Temperature [Min]	65 °F, 18 °C
Type	Tubing, Flexible

Part	Operating Temperature [Min]	Operating Temperature [Max]	Material	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Type	Features	Shelf Life	Shelf Life Start	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Length [x]	Length [x]	Color	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Shrink Temperature	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]
ALPHA WIRE ST3033/8 BK103	-55 °C	125 °C	Polyolefin (PO)	0.051 in	1.3 mm	0.118 in	2.99 mm	Tubing Flexible	Abrasion Resistant Adhesive Lined Chemical Resistant Fluid Resistant Heat Resistant UV Resistant Water Resistant	36 Months	Date of Manufacture	18 °C 65 °F	35 °C	1.22 m	4 ft	Black	1	3	110 °C	0.374 in	9.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Tubing, Flexible 0.374" (9.50mm) 3 to 1 Black 4.00' (1.22m)
