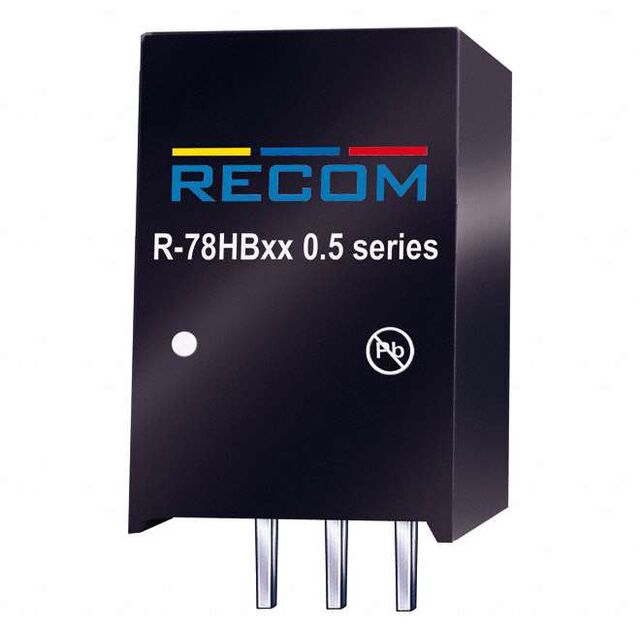

R-78HB6.5-0.5

Active

RECOM Power

NON-ISOLATED DC/DC CONVERTERS 0.5A DC/DC REG 9-72VIN 6.5VOUT

Search across all available documentation for this part.

Active

RECOM Power

NON-ISOLATED DC/DC CONVERTERS 0.5A DC/DC REG 9-72VIN 6.5VOUT

Technical Specifications

Parameters and characteristics for this part

Specification	R-78HB6.5-0.5

Applications	ITE (Commercial)
Current - Output (Max) [Max]	500 mA
Efficiency	91 %
Features	OTP, SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	3-SIP Module
Power (Watts)	3 W
Size / Dimension [x]	0.45 in
Size / Dimension [x]	11.5 mm
Size / Dimension [y]	8.5 mm
Size / Dimension [y]	0.33 in
Size / Dimension [z]	17.5 mm
Size / Dimension [z]	0.69 "
Type	Linear Regulator Replacement
Voltage - Input (Max) [Max]	72 V
Voltage - Input (Min) [Min]	9 V
Voltage - Output 1	6.5 V

Non-Isolated DC/DC Converters 0.3A DC/DC REG 36-72Vin 24Vout

Part	Features	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Type	Current - Output (Max) [Max]	Package / Case	Voltage - Input (Min) [Min]	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Voltage - Input (Max) [Max]	Efficiency	Power (Watts)	Mounting Type	Number of Outputs
RECOM Power R-78HB6.5-0.5	OTP SCP	8.5 mm	17.5 mm	0.45 in	11.5 mm	0.69 "	0.33 in	Linear Regulator Replacement	500 mA	3-SIP Module	9 V	6.5 V	85 °C	-40 °C	ITE (Commercial)	72 V	91 %	3 W	Through Hole	1
