1911-3-200-45

Active

Kendall Howard

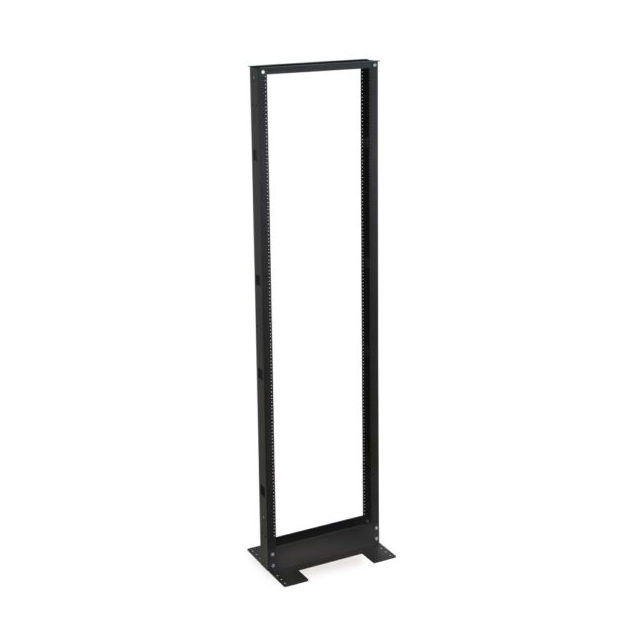

45U 2-POST RELAY RACK

Search across all available documentation for this part.

Active

Kendall Howard

45U 2-POST RELAY RACK

Technical Specifications

Parameters and characteristics for this part

Part	Type	Material	Mounting Rails	Ventilation	Style	Dimensions - Overall [x]	Dimensions - Overall [z]	Dimensions - Overall [z]	Dimensions - Overall [y]	Dimensions - Overall [y]	Dimensions - Overall [x]	Number of Units	Color	Door	Weight	Weight	Number of Units
Kendall Howard 1911-3-000-41	Open Rack	Cold Roll Steel (CRS)	Two Pair	Non-Vented	Open Rack Single Frame	604.78 mm	78 in	1981.2 mm	16 "	406.4 mm	23.81 in	41U	Black	Doorless	28.5 kg	62.8 lbs
Kendall Howard 1911-3-200-45	Open Rack	Cold Roll Steel (CRS)	One Pair	Non-Vented	Open Rack Single Frame	528.57 mm	84.12 in	2136.65 mm	15 in	381 mm	20.81 in		Black	Doorless	18.1 kg	40 lbs	45 U
Kendall Howard 1911-3-200-24	Open Rack	Cold Roll Steel (CRS)	One Pair	Non-Vented	Open Rack Single Frame	528.57 mm	78 in	1203.2 mm	15 in	381 mm	20.81 in		Black	Doorless	13.2 kg	29 lbs	24 U

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cold Roll Steel (CRS) Open Rack Open Rack, Single Frame 20.810" L x 15.000" W x 84.12" H (528.57mm x 381.00mm x 2136.65mm) Black
