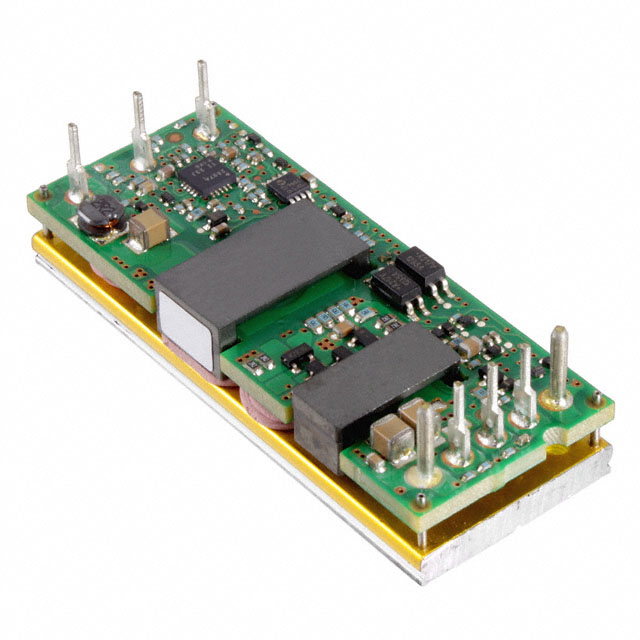

ESTW010A0A41-HZ

Active

OmniOn Power™

DC DC CONVERTER 5V 50W

Search across all available documentation for this part.

Active

OmniOn Power™

DC DC CONVERTER 5V 50W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Isolation	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Features	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Mounting Type	Current - Output (Max) [Max]	Applications	Number of Outputs	Type	Voltage - Output 1	Package / Case	Power (Watts)
OmniOn Power™ ESTW010A0A41-HZ	2250 VDC	75 V	36 V	0.48 in	12.2 mm	57.9 mm	0.9 "	2.28 in	22.8 mm	OCP OTP OVP Remote On/Off UVLO	Active Low Enable	85 °C	-40 °C	91 %	Through Hole	10 A	ITE (Commercial)	1	Isolated Module	5 V	1/8 Brick 8-DIP Module	50 W
OmniOn Power™ ESTW010A0A4Z	2250 VDC	75 V	36 V	0.34 in	8.5 mm	57.9 mm	0.9 "	2.28 in	22.8 mm	OCP OTP OVP Remote On/Off UVLO	Active High Enable	85 °C	-40 °C	91 %	Through Hole	10 A	ITE (Commercial)	1	Isolated Module	5 V	1/8 Brick 8-DIP Module	50 W
OmniOn Power™ ESTW010A0A41Z	2250 VDC	75 V	36 V	7.6 mm	0.3 in	2.28 "	22.8 mm	57.9 mm	22.86 mm	OCP OTP OVP Remote On/Off UVLO	Active Low Enable	85 °C	-40 °C	91 %	Through Hole	10 A	ITE (Commercial)	1	Isolated Module	5 V	8-DIP Module	50 W
OmniOn Power™ ESTW010A0B41Z	2250 VDC	75 V	36 V	0.35 "	8.9 mm	58.4 mm	0.9 "	2.3 in	22.9 mm	OCP OTP OVP Remote On/Off SCP UVLO	Active Low Enable	85 °C	-40 °C	92.5 %	Through Hole	10 A	ITE (Commercial)	1	Isolated Module	12 V	1/8 Brick 8-DIP Module	120 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	540	$ 23.39

General part information

Isolated Module DC DC Converter 1 Output 5V 10A 36V - 75V Input
