F6N1.25CW75

Active

Techflex

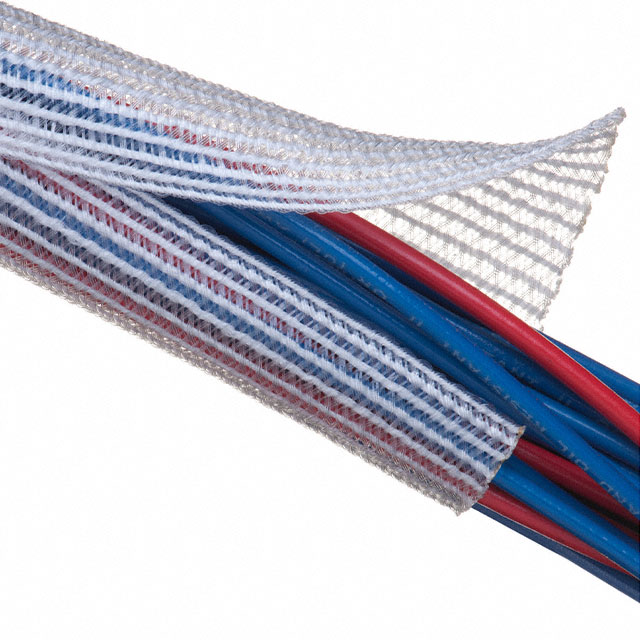

SELF WRAP 1.25" X 75' CLEAR/WHT

Search across all available documentation for this part.

Active

Techflex

SELF WRAP 1.25" X 75' CLEAR/WHT

Technical Specifications

Parameters and characteristics for this part

Specification	F6N1.25CW75

Abrasion Protection	Abrasion and Cut Resistant
Color	White, Clear
Diameter - Inside, Non-Expanded [diameter]	1.25 "
Diameter - Inside, Non-Expanded [diameter]	31.75 mm
Features	Clean Cut, Chemical Resistant
Length [x]	22.86 m
Length [x]	75 ft
Material	Polyethylene Terephthalate (PET), Halogen Free
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-70 °C
Type	Self Wrap
Type Attributes	Split Flexible Tube
Wall Thickness [custom]	0.96 mm
Wall Thickness [custom]	0.038 in

Part	Material Flammability Rating	Features	Material	Operating Temperature [Max]	Operating Temperature [Min]	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Length [x]	Length [x]	Wall Thickness [custom]	Wall Thickness [custom]	Type	Abrasion Protection	Type Attributes	Color	Length	Length
Techflex F6N1.25BK75	UL94 V-0	Chemical Resistant Clean Cut	Polyethylene Terephthalate (PET) Halogen Free	125 °C	-70 °C	1.25 "	31.75 mm	22.86 m	75 ft	0.96 mm	0.038 in	Self Wrap	Abrasion and Cut Resistant	Split Flexible Tube	Black
Techflex F6N1.00CW100	UL94 V-0	Chemical Resistant Clean Cut	Polyethylene Terephthalate (PET) Halogen Free	125 °C	-70 °C	1 in	25.4 mm			0.96 mm	0.038 in	Self Wrap	Abrasion and Cut Resistant	Split Flexible Tube	Clear White	100 ft	30.48 m
Techflex F6N1.25CW75	UL94 V-0	Chemical Resistant Clean Cut	Polyethylene Terephthalate (PET) Halogen Free	125 °C	-70 °C	1.25 "	31.75 mm	22.86 m	75 ft	0.96 mm	0.038 in	Self Wrap	Abrasion and Cut Resistant	Split Flexible Tube	Clear White
Techflex F6N1.00BK400	UL94 V-0	Chemical Resistant Clean Cut	Polyethylene Terephthalate (PET) Halogen Free	125 °C	-70 °C	1 in	25.4 mm	121.92 m	400 ft	0.96 mm	0.038 in	Self Wrap	Abrasion and Cut Resistant	Split Flexible Tube	Black
Techflex F6N1.50BK25	UL94 V-0	Chemical Resistant Clean Cut	Polyethylene Terephthalate (PET) Halogen Free	125 °C	-70 °C	1.5 in	38.1 mm	7.62 m	25 ft	0.96 mm	0.038 in	Self Wrap	Abrasion and Cut Resistant	Split Flexible Tube	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 177.69

General part information

Self Wrap X 75.00' (22.86m) Clear, White
