170-22500

Active

HELLERMANNTYTON

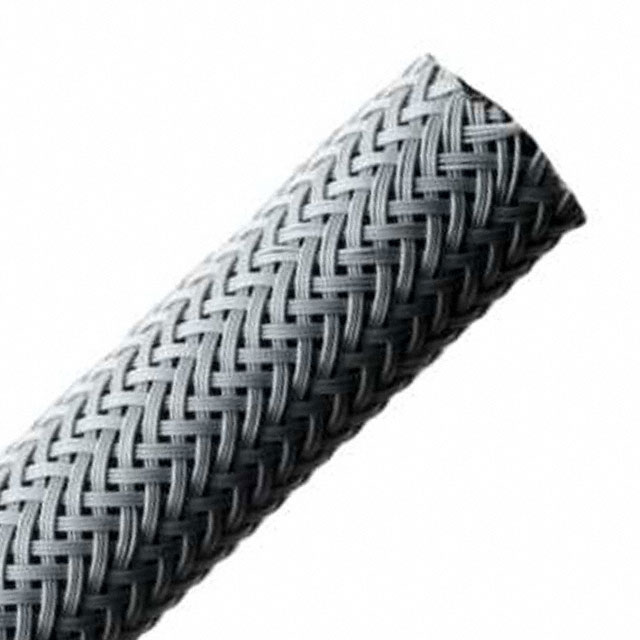

HELAGAINE BRAIDED SLEEVING, 25 MM DIA, PA66, GY, 164FT/REEL

Search across all available documentation for this part.

Active

HELLERMANNTYTON

HELAGAINE BRAIDED SLEEVING, 25 MM DIA, PA66, GY, 164FT/REEL

Technical Specifications

Parameters and characteristics for this part

Specification	170-22500

Abrasion Protection	Abrasion and Cut Resistant
Color	Gray
Diameter - Inside, Expanded [diameter]	1.102 in
Diameter - Inside, Expanded [diameter]	28 mm
Diameter - Outside, Non-Expanded [diameter]	25 mm
Diameter - Outside, Non-Expanded [diameter]	0.984 in
Features	Solvent Resistant, Salt Resistant
Heat Protection	Heat Stabilized
Length [x]	50 m
Length [x]	164 ft
Liquid Protection	Fluid Resistant, Gasoline Resistant, Moisture Resistant
Material	Polyamide (PA66), Nylon 6/6, Halogen Free
Material Flammability Rating	UL94 V-2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-60 °C
Type	Sleeve
Type Attributes	Expandable

Part	Material Flammability Rating	Features	Type	Abrasion Protection	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Liquid Protection	Type Attributes	Length [x]	Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Material	Heat Protection	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Color
HELLERMANNTYTON 170-22500	UL94 V-2	Salt Resistant Solvent Resistant	Sleeve	Abrasion and Cut Resistant	1.102 in	28 mm	Fluid Resistant Gasoline Resistant Moisture Resistant	Expandable	50 m	164 ft	150 °C	-60 °C	Polyamide (PA66) Nylon 6/6 Halogen Free	Heat Stabilized	25 mm	0.984 in	Gray
HELLERMANNTYTON 170-22000	UL94 V-2	Salt Resistant Solvent Resistant	Sleeve	Abrasion and Cut Resistant	0.906 in	23 mm	Fluid Resistant Gasoline Resistant Moisture Resistant	Expandable	50 m	164 ft	150 °C	-60 °C	Polyamide (PA66) Nylon 6/6 Halogen Free	Heat Stabilized	20 mm	0.787 "	Gray
