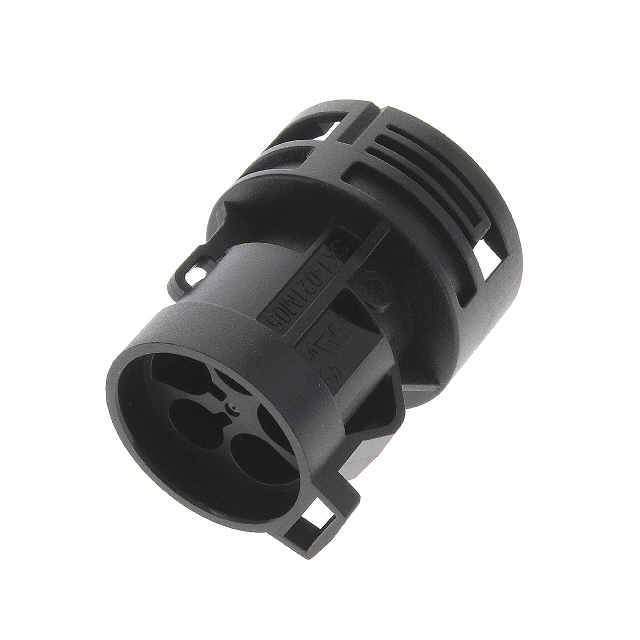

SK1-021M05

Active

Anderson Power Products, Inc.

CONN RCPT HSG MALE 5POS INLINE

Search across all available documentation for this part.

Active

Anderson Power Products, Inc.

CONN RCPT HSG MALE 5POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	SK1-021M05

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Type	Crimp
Fastening Type	Latch Holder
Features	Backshell
Housing Color	Black
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions [custom]	5
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Material	Polycarbonate (PC)
Shell Size - Insert	21-5
Shielding	Unshielded
Type	For Male Pins

Part	Type	Fastening Type	Contact Shape	Material Flammability Rating	Shell Size - Insert	Shell Material	Ingress Protection	Housing Color	Features	Mounting Type	Number of Positions [custom]	Insert Material	Note	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Orientation	Connector Type
Anderson Power Products, Inc. SK1-021M05	For Male Pins	Latch Holder	Circular	UL94 V-0	21-5	Polycarbonate (PC)	IP68 - Dust Tight Waterproof	Black	Backshell	Free Hanging (In-Line)	5	Polycarbonate (PC)	Contacts Not Included	Unshielded	-20 C	105 ░C	Crimp	Keyed	Receptacle Housing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 (Power) Position Circular Connector Receptacle Housing Free Hanging (In-Line) Backshell
