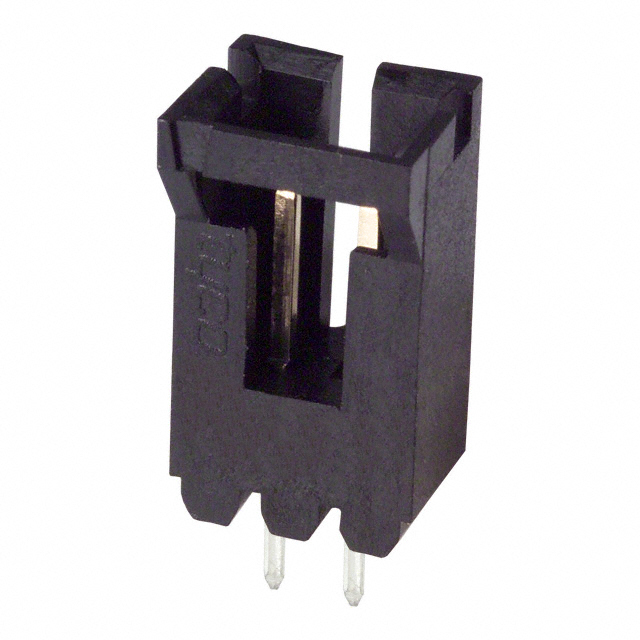

5-104363-1

Active

TE Connectivity Raychem Cable Protection

CONN HEADER VERT 2POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

5-104363-1

Active

TE Connectivity Raychem Cable Protection

CONN HEADER VERT 2POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5-104363-1

Applications	Medical, General Purpose, Automotive, Telecommunications
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Holder
Features	Keying Slot
Insulation Color	Black
Insulation Height	13.6 mm
Insulation Height	0.535 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Overall Contact Length	0.55 in
Overall Contact Length	13.97 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

AMPMODU MTE Series

Headers & Wire Housings 21 MTE VERT SMT HDR FULL SN-PB

...

Part	Contact Type	Applications	Style	Contact Finish - Post	Features	Material Flammability Rating	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Fastening Type	Termination	Mounting Type	Contact Finish - Mating	Shrouding	Insulation Color	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Contact Length - Mating [x]	Contact Length - Mating	Contact Shape	Insulation Material	Pitch - Mating	Pitch - Mating	Connector Type	Number of Positions	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Pin or Socket	Contact Termination	Overall Contact Length
TE Connectivity Raychem Cable Protection 5-103635-4	Male Pin	Automotive General Purpose Medical Telecommunications	Board to Board Cable	Tin	Keying Slot	UL94 V-0	All	-65 ░C	105 ░C	15 µin	0.38 µm	0.13 in	3.3 mm	3 A	Latch Holder	Solder	Through Hole Right Angle	Gold	Shrouded - 4 Wall	Black	Brass	2.54 µm	100 µin	1	0.23 in	5.84 mm	Square	Thermoplastic	0.1 in	2.54 mm	Header
TE Connectivity Raychem Cable Protection 5-104363-1	Male Pin	Automotive General Purpose Medical Telecommunications	Board to Board Cable	Tin	Keying Slot	UL94 V-0	All	-65 ░C	105 ░C	15 µin	0.38 µm	0.13 in	3.3 mm	3 A	Latch Holder	Solder	Through Hole	Gold	Shrouded - 4 Wall	Black	Brass	2.54 µm	100 µin	1	0.23 in	5.84 mm	Square	Thermoplastic	0.1 in	2.54 mm	Header	2	13.6 mm	0.535 in	0.55 in	13.97 mm
TE Connectivity Raychem Cable Protection 5-104505-3																																					22 AWG	26 AWG	Tin	2.54 µm	100 µin	Pin	Crimp
TE Connectivity Raychem Cable Protection 5-103671-4	Male Pin	Automotive General Purpose Medical Telecommunications	Board to Board Cable	Tin	Board Lock Keying Slot	UL94 V-0	All	-65 ░C	105 ░C	100 çin	2.54 çm	0.13 in	3.3 mm		Latch Holder	Solder	Through Hole		Shrouded - 4 Wall	Black	Brass	2.54 µm	100 µin	1	0.23 in	5.84 mm	Square	Liquid Crystal Polymer (LCP)	0.1 in	2.54 mm	Header
TE Connectivity Raychem Cable Protection 5-1375549-3	Male Pin	Automotive General Purpose Medical Telecommunications	Board to Board Cable	Tin	Board Lock Keying Slot	UL94 V-0	All	-65 ░C	105 ░C	100 çin	2.54 çm			3 A	Latch Holder	Solder	Surface Mount		Shrouded - 4 Wall	Black	Brass	2.54 µm	100 µin	1	0.23 in	5.84 mm	Square	Thermoplastic	0.1 in	2.54 mm	Header	4	13.6 mm	0.535 in
TE Connectivity Raychem Cable Protection 2-103673-1	Male Pin	Automotive General Purpose Medical Telecommunications	Board to Board Cable	Tin	Board Lock Keying Slot	UL94 V-0	All	-65 ░C	105 ░C	15 µin	0.38 µm	0.13 in	3.3 mm	3 A	Latch Holder	Solder	Through Hole Right Angle	Gold	Shrouded - 4 Wall	Black	Brass	2.54 µm	100 µin	1	0.23 in	5.84 mm	Square	Thermoplastic	0.1 in	2.54 mm	Header	22 positions
TE Connectivity Raychem Cable Protection 1-104361-9	Male Pin	Automotive General Purpose Medical Telecommunications	Board to Board Cable	Tin-Lead	Board Lock Keying Slot	UL94 V-0	All	-65 ░C	105 ░C	15 µin	0.38 µm	0.145 in	3.68 mm	3 A	Latch Holder	Solder	Through Hole Right Angle	Gold	Shrouded - 4 Wall	Black	Brass	2.54 µm	100 µin	1	0.23 in	5.84 mm	Square	Thermoplastic	0.1 in	2.54 mm	Header	20
TE Connectivity Raychem Cable Protection 6-103735-9	Male Pin	Automotive General Purpose Medical Telecommunications	Board to Board Cable	Tin	Keying Slot	UL94 V-0	All	-65 ░C	105 ░C	30 Áin	0.76 Ám	0.13 in	3.3 mm	3 A	Latch Holder	Solder	Through Hole	Gold	Shrouded - 4 Wall	Black	Brass	2.54 µm	100 µin	1	0.23 in	5.84 mm	Square	Thermoplastic	0.1 in	2.54 mm	Header	20	13.6 mm	0.535 in		0.545 in								13.84 mm
TE Connectivity Raychem Cable Protection 6-1375583-3	Male Pin	Automotive General Purpose Medical Telecommunications	Board to Board Cable	Tin	Board Lock Keying Slot	UL94 V-0	All	-65 ░C	105 ░C	30 Áin	0.76 Ám			3 A	Latch Holder	Solder	Surface Mount	Gold	Shrouded - 4 Wall	Black	Brass	2.54 µm	100 µin	1	0.23 in	5.84 mm	Square	Thermoplastic	0.1 in	2.54 mm	Header	14	13.6 mm	0.535 in
TE Connectivity Raychem Cable Protection 6-1375582-0	Male Pin	Automotive General Purpose Medical Telecommunications	Board to Board Cable	Tin	Board Lock Keying Slot	UL94 V-0	All	-65 ░C	105 ░C	15 µin	0.38 µm			3 A	Latch Holder	Solder	Surface Mount	Gold	Shrouded - 4 Wall	Black	Brass	2.54 µm	100 µin	1	0.23 in	5.84 mm	Square	Thermoplastic	0.1 in	2.54 mm	Header	11	13.6 mm	0.535 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 0.96
		71	$ 0.86
		142	$ 0.75
		568	$ 0.68
		1065	$ 0.59
		5041	$ 0.51
		10011	$ 0.50

Description

General part information

AMPMODU MTE Series

Headers & Wire Housings 21 MTE VERT SMT HDR FULL SN-PB
