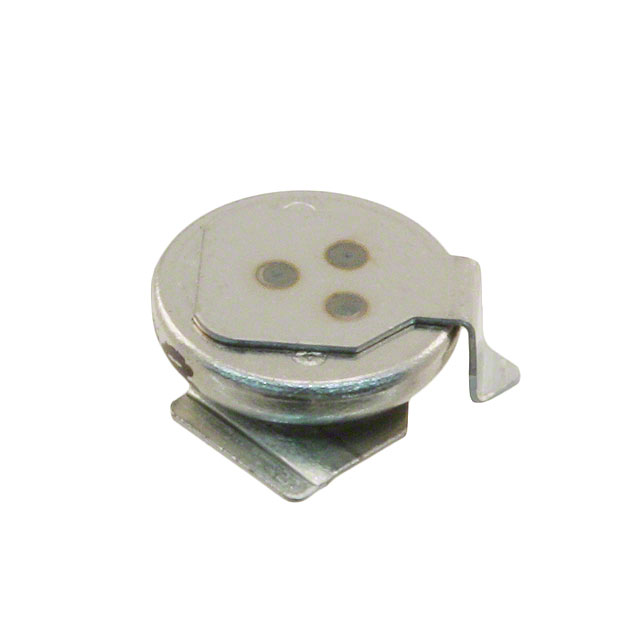

PAS311HR-VG1

Unknown

TAIYO YUDEN

CAP 30MF 3.3V SURFACE MNT

Search across all available documentation for this part.

Unknown

TAIYO YUDEN

CAP 30MF 3.3V SURFACE MNT

Technical Specifications

Parameters and characteristics for this part

Specification	PAS311HR-VG1

Capacitance	30000 µF
ESR (Equivalent Series Resistance)	120 Ohm
Height - Seated (Max) [Max] [z]	0.043 in
Height - Seated (Max) [Max] [z]	1.1 mm
Mounting Type	Surface Mount
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Package / Case	Coin, Wide and Corner Terminals
Size / Dimension [diameter]	3.8 mm
Size / Dimension [diameter]	0.15 in
Termination	SMD (SMT) Tabs
Voltage - Rated	3.3 V

Part	Voltage - Rated	ESR (Equivalent Series Resistance)	Capacitance	Package / Case	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Termination	Size / Dimension [diameter]	Size / Dimension [diameter]
TAIYO YUDEN PAS311HR-VG1	3.3 V	120 Ohm	30000 µF	Coin Wide and Corner Terminals	Surface Mount	-20 C	60 °C	0.043 in	1.1 mm	SMD (SMT) Tabs	3.8 mm	0.15 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

30 mF (EDLC) Supercapacitor 3.3 V Coin, Wide and Corner Terminals 120Ohm
