109R0612S4D011

Active

Sanyo Denki America Inc.

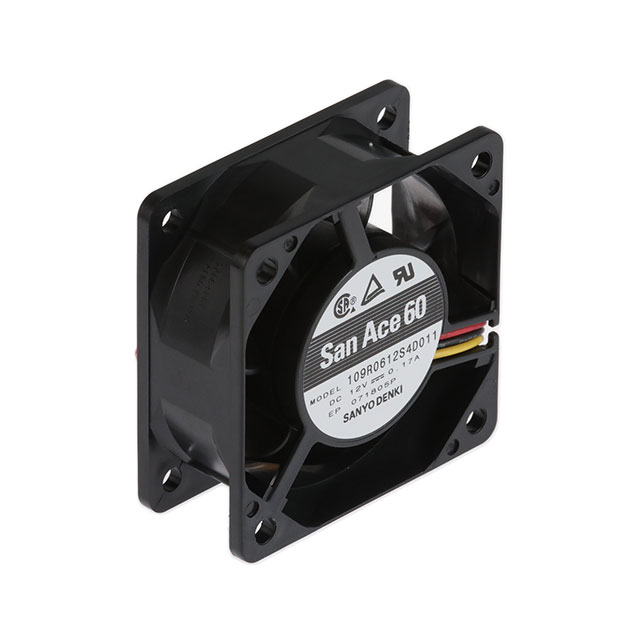

FAN AXIAL 60X25MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRotor Balancing Handling Instructions for Fan Motors +1

109R0612S4D011

Active

Sanyo Denki America Inc.

FAN AXIAL 60X25MM 12VDC WIRE

Deep-Dive with AI

DocumentsRotor Balancing Handling Instructions for Fan Motors +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	109R0612S4D011

Air Flow	0.644 m³/min
Air Flow	23 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.17 A
Fan Type	Tubeaxial
Features	Locked Rotor Sensor
Material - Blade	Plastic
Material - Frame	Plastic
Noise	33 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
RPM	4600 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	0.228 in H2O
Static Pressure	56.8 Pa
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	6 VDC
Weight	90.26 g
Weight	0.199 lb
Width [y]	25 mm

109R0612 Series

Part	Voltage - Rated	Approval Agency	Power (Watts)	RPM	Voltage Range [Max]	Voltage Range [Min]	Weight	Weight	Noise	Width [y]	Current Rating (Amps)	Material - Frame	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Static Pressure	Static Pressure	Air Flow	Air Flow	Material - Blade	Bearing Type	Fan Type	Termination	Features
Sanyo Denki America Inc. 109R0612G4021	12 VDC	CSA TUV UL	2.88 W	5600 RPM	13.2 VDC	10.8 VDC	90.26 g	0.199 lb	39 dB(A)	25 mm	0.24 A	Plastic	-20 °C	70 °C	-20 C	70 °C	60 mm	60 mm	0.351 in H2O	87.3 Pa	27.5 CFM	0.77 m³/min	Plastic	Ball	Tubeaxial	2 Wire Leads
Sanyo Denki America Inc. 109R0612P4J061	12 VDC		5.64 W														60 mm	60 mm
Sanyo Denki America Inc. 109R0612S4021	12 VDC	CSA TUV UL		4600 RPM	13.8 VDC	6 VDC	90.26 g	0.199 lb	33 dB(A)	25 mm	0.17 A	Plastic	-20 °C	70 °C	-20 C	70 °C	60 mm	60 mm	0.228 in H2O	56.8 Pa	23 CFM	0.644 m³/min	Plastic	Ball	Tubeaxial	2 Wire Leads
Sanyo Denki America Inc. 109R0612G402	12 VDC	CSA TUV UL	2.88 W	5600 RPM	13.2 VDC	10.8 VDC	90.26 g	0.199 lb	39 dB(A)	25 mm	0.24 A	Plastic	-20 °C	70 °C	-20 C	70 °C	60 mm	60 mm	0.351 in H2O	87.3 Pa	27.5 CFM	0.77 m³/min	Plastic	Ball	Tubeaxial	2 Wire Leads
Sanyo Denki America Inc. 109R0612S402	12 VDC	CSA TUV UL		4600 RPM	13.8 VDC	6 VDC	90.26 g	0.199 lb	33 dB(A)	25 mm	0.17 A	Plastic	-20 °C	70 °C	-20 C	70 °C	60 mm	60 mm	0.228 in H2O	56.8 Pa	23 CFM	0.644 m³/min	Plastic	Ball	Tubeaxial	2 Wire Leads
Sanyo Denki America Inc. 109R0612F401	12 VDC	CSA TUV UL	1.08 W	3200 RPM	13.8 VDC	6 VDC	90.26 g	0.199 lb	24 dB	25 mm	0.09 A	Plastic	-20 °C	70 °C	-20 C	70 °C	60 mm	60 mm	0.118 in H2O	29.4 Pa	15.5 CFM	0.434 m³/min	Plastic	Ball	Tubeaxial	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 109R0612S4D011	12 VDC	CSA TUV UL		4600 RPM	13.8 VDC	6 VDC	90.26 g	0.199 lb	33 dB(A)	25 mm	0.17 A	Plastic	-20 °C	70 °C	-20 C	70 °C	60 mm	60 mm	0.228 in H2O	56.8 Pa	23 CFM	0.644 m³/min	Plastic	Ball	Tubeaxial	3 Wire Leads	Locked Rotor Sensor
Sanyo Denki America Inc. 109R0612H401	12 VDC	CSA TUV UL	1.32 W	3800 RPM	13.8 VDC	6 VDC	90.26 g	0.199 lb	28 dB	25 mm	110 mA	Plastic	-20 °C	70 °C	-20 C	70 °C	60 mm	60 mm			18.7 CFM	0.524 mł/min	Plastic	Ball	Tubeaxial	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 109R0612S4D01	12 VDC	CSA TUV UL		4600 RPM	13.8 VDC	6 VDC	90.26 g	0.199 lb	33 dB(A)	25 mm	0.17 A	Plastic	-20 °C	70 °C	-20 C	70 °C	60 mm	60 mm	0.228 in H2O	56.8 Pa	23 CFM	0.644 m³/min	Plastic	Ball	Tubeaxial	3 Wire Leads	Locked Rotor Sensor
Sanyo Denki America Inc. 109R0612F4D01	12 VDC	CSA TUV UL	1.08 W	3200 RPM	13.8 VDC	6 VDC	90.26 g	0.199 lb	24 dB	25 mm	0.09 A	Plastic	-20 °C	70 °C	-20 C	70 °C	60 mm	60 mm	0.118 in H2O	29.4 Pa	15.5 CFM	0.434 m³/min	Plastic	Ball	Tubeaxial	3 Wire Leads	Locked Rotor Sensor
