C3APS-3418G

Active

CW Industries

IDC CABLE - CSC34S/AE34G/CPC34S

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CSC34S/AE34G/CPC34S

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Cable Termination	Number of Positions	Shielding	Pitch - Connector	Pitch - Connector	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Usage	Pitch - Cable	Pitch - Cable	Length [x]	Length [x]	Length	Length	Length	Color
CW Industries C3APS-3418G	Socket to PCB	IDC	34	Unshielded	0.1 in	2.54 mm	2.54 µm	100 µin	Tin	Board In	0.05 "	1.27 mm	457.2 mm	1.5 ft
CW Industries C3APS-3406G	Socket to PCB	IDC	34	Unshielded	0.1 in	2.54 mm	2.54 µm	100 µin	Tin	Board In	0.05 "	1.27 mm			152.4 mm	6 "	0.5 '
CW Industries C3APS-3436M	Socket to PCB	IDC	34	Unshielded	0.1 in	2.54 mm	2.54 µm	100 µin	Tin	Board In	0.05 "	1.27 mm	914.4 mm	3 ft				Multiple Ribbon
CW Industries C3APS-3406M	Socket to PCB	IDC	34	Unshielded	0.1 in	2.54 mm	2.54 µm	100 µin	Tin	Board In	0.05 "	1.27 mm			152.4 mm	6 "	0.5 '	Multiple Ribbon
CW Industries C3APS-3436G	Socket to PCB	IDC	34	Unshielded	0.1 in	2.54 mm	2.54 µm	100 µin	Tin	Board In	0.05 "	1.27 mm	914.4 mm	3 ft
CW Industries C3APS-3418M	Socket to PCB	IDC	34	Unshielded	0.1 in	2.54 mm	2.54 µm	100 µin	Tin	Board In	0.05 "	1.27 mm	457.2 mm	1.5 ft				Multiple Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

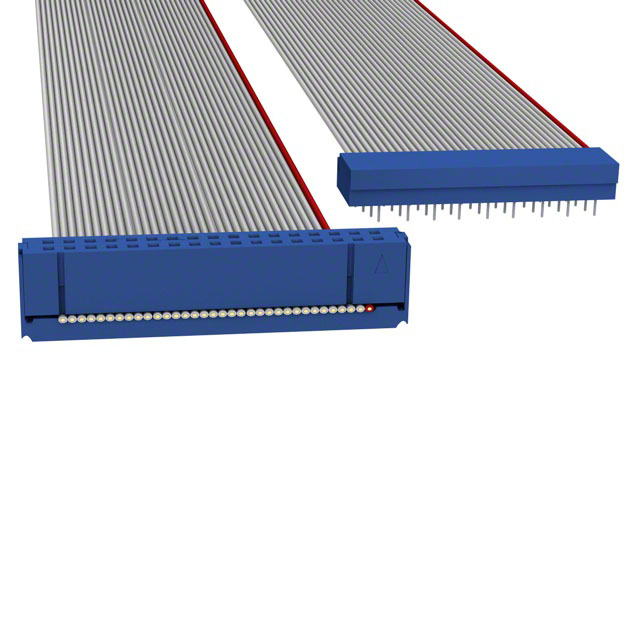

34 Position Cable Assembly Rectangular Socket to PCB 1.50' (457.20mm)
