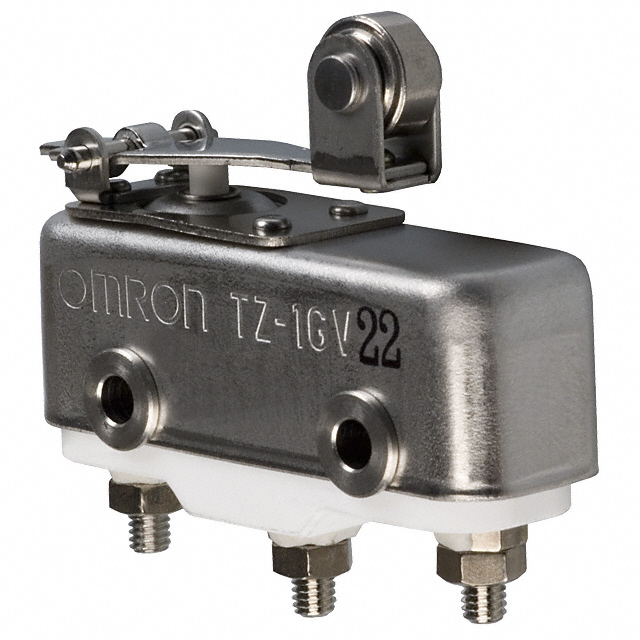

TZ-1GV22
ActiveOmron Electronics Inc-EMC Div
SWITCH SNAP ACTION SPDT 1A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TZ-1GV22
ActiveOmron Electronics Inc-EMC Div
SWITCH SNAP ACTION SPDT 1A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TZ-1GV22 |
|---|---|
| Actuator Type | Roller, Lever |
| Circuit | SPDT |
| Differential Travel | 0.6 mm |
| Differential Travel | 0.025 in |
| Electrical Life | 50000 Cycles |
| Ingress Protection | IP00 |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 240 gf |
| Operating Position | 1.125 in |
| Operating Position | 28.6 mm |
| Operating Temperature [Max] | 400 °C |
| Operating Temperature [Min] | -65 ░C |
| Overtravel | 0.075 in |
| Overtravel | 1.9 mm |
| Pretravel | 1.5 mm |
| Pretravel | 0.06 in |
| Release Force | 35 gf |
| Switch Function | On-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 446.28 | |
| 10 | $ 423.96 | |||
Description
General part information
TZ-1G Series
Switch SPDT Chassis Mount
