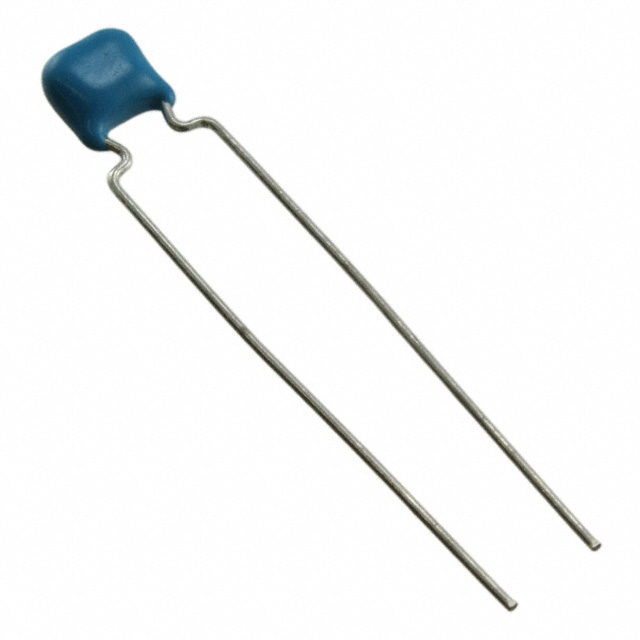

RDER72J473K3K1H03B

Active

Murata Power Solutions Inc.

CAP CER 0.047UF 630V X7R RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RDER72J473K3K1H03B

Active

Murata Power Solutions Inc.

CAP CER 0.047UF 630V X7R RADIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RDER72J473K3K1H03B

Applications	General Purpose
Height - Seated (Max) [Max] [z]	0.295 in
Height - Seated (Max) [Max] [z]	7.5 mm
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lead Style	Formed Leads
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	5.5 mm, 0.217 in
Size / Dimension [y]	4 mm, 0.157 "
Temperature Coefficient	X7R
Tolerance	10 %
Voltage - Rated	630 V

RDER72J Series

Part	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Temperature Coefficient	Operating Temperature [Min]	Operating Temperature [Max]	Lead Spacing	Lead Spacing	Voltage - Rated	Capacitance	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Tolerance	Lead Style	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
Murata Power Solutions Inc. RDER72J333K3K1H03B	General Purpose	0.295 in	7.5 mm	Through Hole	X7R	-55 °C	125 °C	5 mm	0.197 in	630 V	0.033 çF	0.217 in 5.5 mm	0.157 " 4 mm	Radial	10 %	Formed Leads
Murata Power Solutions Inc. RDER72J102K2M1H03A	General Purpose			Through Hole	X7R	-55 °C	125 °C	5 mm	0.197 in	630 V	0.001 µF	5.5 mm		Radial	10 %	Formed Leads	0.236 in	6 mm	3.15 mm	0.124 "	0.217 "
Murata Power Solutions Inc. RDER72J474MUE1H03A	General Purpose	0.512 "	13 mm	Through Hole	X7R	-55 °C	125 °C	5 mm	0.197 in	630 V	0.47 µF	7.7 mm	4 mm	Radial	20 %	Straight				0.157 in	0.303 in
Murata Power Solutions Inc. RDER72J104K4K1H03B	General Purpose			Through Hole	X7R	-55 °C	125 °C	5 mm	0.197 in	630 V	100000 pF	7.5 mm	4 mm	Radial	10 %	Formed Leads	0.217 in	5.5 mm		0.157 in	0.295 in
Murata Power Solutions Inc. RDER72J222K2K1H03B	General Purpose			Through Hole	X7R	-55 °C	125 °C	5 mm	0.197 in	630 V	2200 pF	5.5 mm		Radial	10 %	Formed Leads	0.157 in	4 mm	3.15 mm	0.124 "	0.217 "
Murata Power Solutions Inc. RDER72J683K4M1H03A	General Purpose			Through Hole	X7R	-55 °C	125 °C	5 mm	0.197 in	630 V	0.068 µF	7.5 mm	4 mm	Radial	10 %	Formed Leads	0.217 in	5.5 mm		0.157 in	0.295 in
Murata Power Solutions Inc. RDER72J223K3M1H03A	General Purpose	0.295 in	7.5 mm	Through Hole	X7R	-55 °C	125 °C	5 mm	0.197 in	630 V	0.022 µF	0.217 in 5.5 mm	0.157 " 4 mm	Radial	10 %	Formed Leads
Murata Power Solutions Inc. RDER72J473K3K1H03B	General Purpose	0.295 in	7.5 mm	Through Hole	X7R	-55 °C	125 °C	5 mm	0.197 in	630 V		0.217 in 5.5 mm	0.157 " 4 mm	Radial	10 %	Formed Leads
Murata Power Solutions Inc. RDER72J682K2M1H03A	General Purpose			Through Hole	X7R	-55 °C	125 °C	5 mm	0.197 in	630 V	6800 pF	5.5 mm		Radial	10 %	Formed Leads	0.157 in	4 mm	3.15 mm	0.124 "	0.217 "
Murata Power Solutions Inc. RDER72J474MUB1H03B	General Purpose	0.512 "	13 mm	Through Hole	X7R	-55 °C	125 °C	5 mm	0.197 in	630 V	0.47 µF	7.7 mm	4 mm	Radial	20 %	Straight				0.157 in	0.303 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.70
		10	$ 0.49
		500	$ 0.28
		1000	$ 0.23
		5000	$ 0.21
		10000	$ 0.20

Description

General part information

RDER72J Series

0.047 µF ±10% 630V Ceramic Capacitor X7R Radial
