ZF5-15-02-T-WT

Active

Samtec Inc.

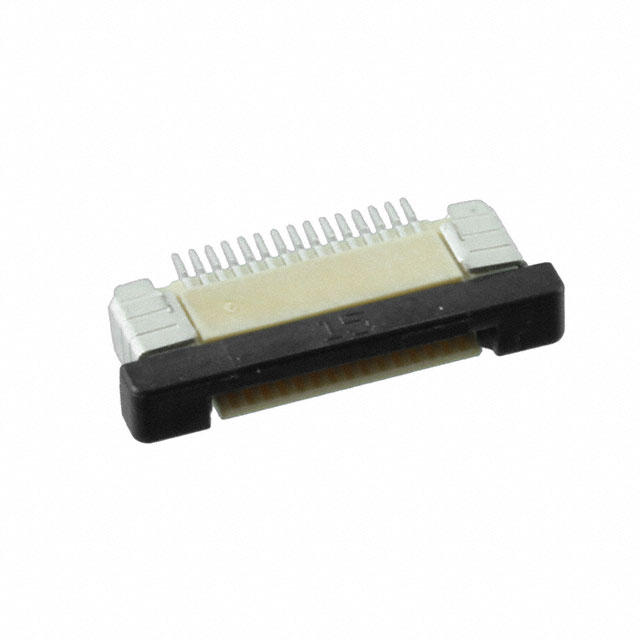

CONN FFC TOP 15POS 0.5MM R/A

Search across all available documentation for this part.

Active

Samtec Inc.

CONN FFC TOP 15POS 0.5MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	ZF5-15-02-T-WT

Cable End Type	Straight
Connector/Contact Type	Contacts, Top
Contact Finish	Tin
Contact Material	Phosphor Bronze
Features	Zero Insertion Force (ZIF), Solder Retention
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FFC
Height Above Board	0.079 in
Height Above Board	2 mm
Housing Color	Natural
Housing Material	Liquid Crystal Polymer (LCP)
Locking Feature	Slide Lock
Mounting Type	Surface Mount, Right Angle
Number of Positions	15
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder

Part	Flat Flex Type	Termination	Housing Material	Pitch [x]	Pitch [x]	Connector/Contact Type	Locking Feature	Operating Temperature [Max]	Operating Temperature [Min]	Features	Housing Color	Mounting Type	Cable End Type	Contact Finish	Height Above Board	Height Above Board	Number of Positions	FFC, FCB Thickness	Contact Material
Samtec Inc. ZF5-15-02-T-WT	FFC	Solder	Liquid Crystal Polymer (LCP)	0.5 mm	0.02 in	Contacts Top	Slide Lock	105 ░C	-55 °C	Solder Retention Zero Insertion Force (ZIF)	Natural	Surface Mount Right Angle	Straight	Tin	0.079 in	2 mm	15	0.3 mm	Phosphor Bronze

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

15 Position FFC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
