FH52K-15S-0.5SH

Active

Hirose Electric USA, Inc.

0.5MM PITCH, 2MM HEIGHT BOTTOM CONTACT, FRONT FLIP 125 ? COMPATIBLE ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFH52 Series Catalog Datasheet

FH52K-15S-0.5SH

Active

Hirose Electric USA, Inc.

0.5MM PITCH, 2MM HEIGHT BOTTOM CONTACT, FRONT FLIP 125 ? COMPATIBLE ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsFH52 Series Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FH52K-15S-0.5SH

Actuator Color	Black
Actuator Material	Liquid Crystal Polymer (LCP), Halogen Free
Cable End Type	Tabbed
Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold
Contact Finish Thickness	1.25 Áin
Contact Finish Thickness	0.03 Ám
Contact Material	Copper Alloy
Current Rating (Amps)	0.5 A
Features	Solder Retention
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board	0.079 in
Height Above Board	2 mm
Housing Color	Gray
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Locking Feature	Flip Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	15
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

FH52 Series

...

Part	Contact Material	Mounting Type	Number of Positions [custom]	Number of Positions [custom]	Actuator Material	Operating Temperature [Min]	Operating Temperature [Max]	Cable End Type	Features	Current Rating (Amps)	Flat Flex Type	Housing Material	Termination	Housing Color	Actuator Color	Mating Cycles	Pitch [x]	Pitch [x]	Material Flammability Rating	Locking Feature	Contact Finish Thickness	Contact Finish Thickness	Connector/Contact Type	Voltage Rating	Height Above Board	Height Above Board	Contact Finish	FFC, FCB Thickness	Number of Positions
Hirose Electric USA, Inc. FH52E-60(30)SB-1SH	Phosphor Bronze	Surface Mount Right Angle	60	30	Liquid Crystal Polymer (LCP)	-40 °C	105 ░C	Tabbed	Solder Retention Zero Insertion Force (ZIF)	0.5 A	FFC FPC	Liquid Crystal Polymer (LCP)	Solder	Gray	Black	20	0.039 in	1 mm	UL94 V-0	Backlock Flip Lock	1.25 Áin	0.03 Ám	Contacts Bottom	50 V	0.079 in	2 mm	Gold	0.3 mm
Hirose Electric USA, Inc. FH52E-60S-0.5SH	Phosphor Bronze	Surface Mount Right Angle			Liquid Crystal Polymer (LCP) Halogen Free	-40 °C	105 ░C	Tabbed		0.5 A	FFC FPC	Liquid Crystal Polymer (LCP) Halogen Free	Solder	Gray	Black	20	0.02 in	0.5 mm	UL94 V-0	Flip Lock	1.25 Áin	0.03 Ám	Contacts Bottom	50 V	0.079 in	2 mm	Gold	0.3 mm	60
Hirose Electric USA, Inc. FH52-26S-0.5SH	Phosphor Bronze	Surface Mount Right Angle			Liquid Crystal Polymer (LCP) Halogen Free	-40 °C	105 ░C	Tabbed		0.5 A	FFC FPC	Liquid Crystal Polymer (LCP) Halogen Free	Solder	Gray	Black	20	0.02 in	0.5 mm	UL94 V-0	Flip Lock	1.25 Áin	0.03 Ám	Contacts Bottom		0.079 in	2 mm	Gold	0.3 mm	26
Hirose Electric USA, Inc. FH52K-22S-0.5SH	Copper Alloy	Surface Mount Right Angle			Liquid Crystal Polymer (LCP) Halogen Free	-40 °C	125 °C	Tabbed	Solder Retention	0.5 A	FFC FPC	Liquid Crystal Polymer (LCP) Halogen Free	Solder	Gray	Black	20	0.02 in	0.5 mm	UL94 V-0	Flip Lock	1.25 Áin	0.03 Ám	Contacts Bottom	50 V	0.079 in	2 mm	Gold	0.3 mm	22 positions
Hirose Electric USA, Inc. FH52-25S-0.5SH	Phosphor Bronze	Surface Mount Right Angle			Liquid Crystal Polymer (LCP) Halogen Free	-40 °C	105 ░C	Tabbed		0.5 A	FFC FPC	Liquid Crystal Polymer (LCP) Halogen Free	Solder	Gray	Black	20	0.02 in	0.5 mm	UL94 V-0	Flip Lock	1.25 Áin	0.03 Ám	Contacts Bottom		0.079 in	2 mm	Gold	0.3 mm
Hirose Electric USA, Inc. FH52K-15S-0.5SH	Copper Alloy	Surface Mount Right Angle			Liquid Crystal Polymer (LCP) Halogen Free	-40 °C	125 °C	Tabbed	Solder Retention	0.5 A	FFC FPC	Liquid Crystal Polymer (LCP) Halogen Free	Solder	Gray	Black	20	0.02 in	0.5 mm	UL94 V-0	Flip Lock	1.25 Áin	0.03 Ám	Contacts Bottom	50 V	0.079 in	2 mm	Gold	0.3 mm	15
Hirose Electric USA, Inc. FH52T-50S-0.5SH	Phosphor Bronze	Surface Mount Right Angle			Liquid Crystal Polymer (LCP) Halogen Free	-40 °C	105 ░C	Tabbed	Solder Retention Zero Insertion Force (ZIF)	0.5 A	FFC FPC	Liquid Crystal Polymer (LCP) Halogen Free	Solder	Gray	Black	20	0.02 in	0.5 mm	UL94 V-0	Flip Lock	1.25 Áin	0.03 Ám	Contacts Bottom	50 V	0.079 in	2 mm	Gold	0.3 mm	50
Hirose Electric USA, Inc. FH52E-18S-0.5SH(99)	Phosphor Bronze	Surface Mount Right Angle			Liquid Crystal Polymer (LCP) Halogen Free	-40 °C	105 ░C	Tabbed		0.5 A	FFC FPC	Liquid Crystal Polymer (LCP) Halogen Free	Solder	Gray	Black	20	0.02 in	0.5 mm	UL94 V-0	Flip Lock	1.25 Áin	0.03 Ám	Contacts Bottom	50 V	0.079 in	2 mm	Gold	0.3 mm	18
Hirose Electric USA, Inc. FH52E-8(4)SB-1SH(99)	Phosphor Bronze	Surface Mount Right Angle			Liquid Crystal Polymer (LCP)	-40 °C	105 ░C	Tabbed	Solder Retention Zero Insertion Force (ZIF)	0.5 A	FFC FPC	Liquid Crystal Polymer (LCP)	Solder	Gray	Black	20	0.039 in	1 mm	UL94 V-0	Backlock Flip Lock	1.25 Áin	0.03 Ám	Contacts Bottom	50 V	0.079 in	2 mm	Gold	0.3 mm	8
Hirose Electric USA, Inc. FH52K-20S-0.5SH	Copper Alloy	Surface Mount Right Angle			Liquid Crystal Polymer (LCP) Halogen Free	-40 °C	125 °C	Tabbed	Solder Retention	0.5 A	FFC FPC	Liquid Crystal Polymer (LCP) Halogen Free	Solder	Gray	Black	20	0.02 in	0.5 mm	UL94 V-0	Flip Lock	1.25 Áin	0.03 Ám	Contacts Bottom	50 V	0.079 in	2 mm	Gold	0.3 mm	20

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.13
		10	$ 1.85
		25	$ 1.77
		50	$ 1.73
		100	$ 1.65
		250	$ 1.50
		500	$ 1.38
		1000	$ 1.18
	Tape & Reel (TR)	3000	$ 1.08
		6000	$ 1.03
		9000	$ 1.00
Newark	Each (Supplied on Full Reel)	1	$ 1.78
		15000	$ 1.56

Description

General part information

FH52 Series

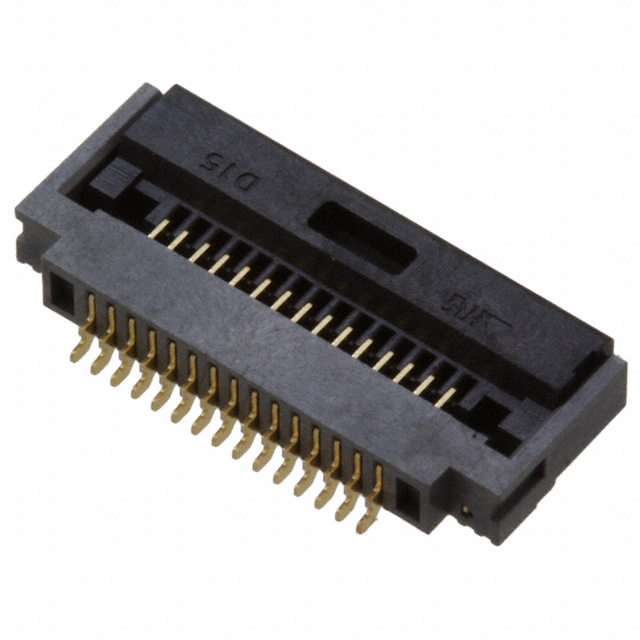

15 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle

Documents

Technical documentation and resources

FH52 Series Catalog

Datasheet
