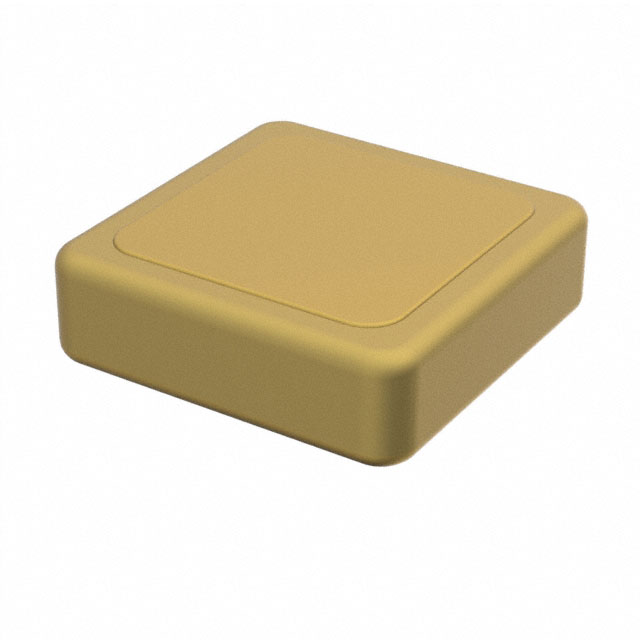

D20BD100M1BX

Active

Knowles Johanson Manufacturing

CAP CER 10PF 100V BD 0202

Search across all available documentation for this part.

Active

Knowles Johanson Manufacturing

CAP CER 10PF 100V BD 0202

Technical Specifications

Parameters and characteristics for this part

Specification	D20BD100M1BX

Applications	RF, High Frequency, Bypass, Microwave, Decoupling
Capacitance	10 pF
Features	Bonding Mountable, Single Layer
Mounting Type	Surface Mount, SLCC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	0505 Metric, 0202
Size / Dimension [x]	0.02 "
Size / Dimension [x]	0.51 mm
Size / Dimension [y]	0.02 in
Size / Dimension [y]	0.51 mm
Temperature Coefficient	BD
Thickness (Max) [Max]	0.22 mm
Thickness (Max) [Max]	0.009 in
Tolerance	20 %
Voltage - Rated	100 V

Part	Mounting Type	Temperature Coefficient	Package / Case	Thickness (Max) [Max]	Thickness (Max) [Max]	Capacitance	Voltage - Rated	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]
Knowles Johanson Manufacturing D20BD100M1BX	Surface Mount SLCC	BD	0202 0505 Metric	0.22 mm	0.009 in	10 pF	100 V	20 %	-55 °C	125 °C	Bypass Decoupling High Frequency Microwave RF	Bonding Mountable Single Layer	0.02 in	0.02 "	0.51 mm	0.51 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 pF ±20% 100V Ceramic Capacitor BD 0202 (0505 Metric)
