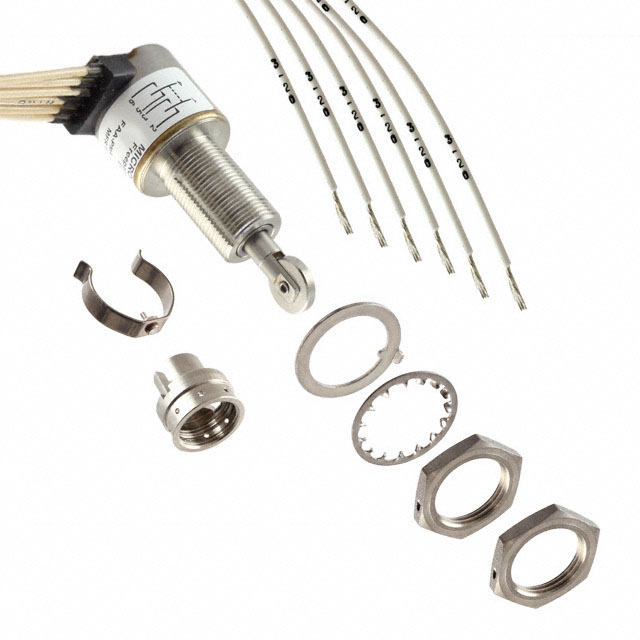

21EN9-6
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDTX2 4A 28V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
21EN9-6
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDTX2 4A 28V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 21EN9-6 |
|---|---|
| Actuator Type | Roller Plunger |
| Circuit | SPDT x 2 |
| Current Rating (Amps) | 4 A |
| Differential Travel | 0.5 mm |
| Differential Travel | 0.02 in |
| Features | True |
| Features [x] | 6 ft |
| Operating Force [Max] | 5443 gf |
| Operating Force [Min] | 2722 gf |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -54 °C |
| Overtravel | 6.35 mm |
| Overtravel | 0.25 in |
| Pretravel | 0.04 in |
| Pretravel | 1 mm |
| Release Force | 1814 gf |
| Switch Function | On-Mom |
| Termination Style | Wire Leads |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1042.55 | |
| 10 | $ 863.66 | |||
Description
General part information
21EN Series
Switch SPDT x 2 Panel Mount
