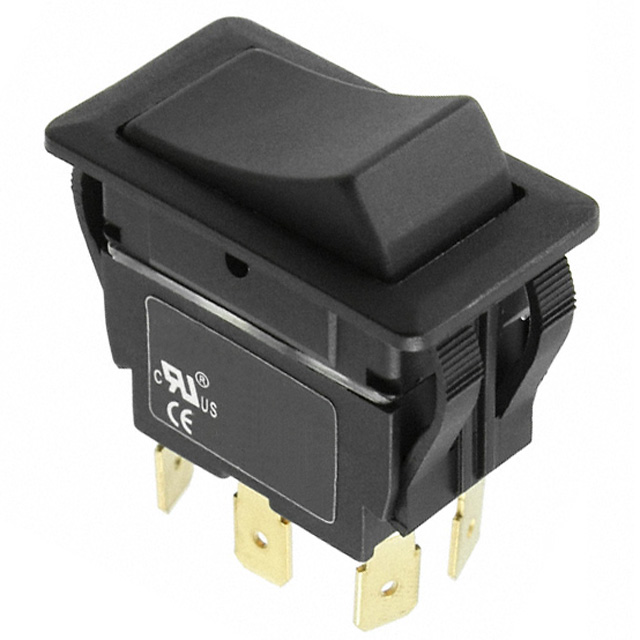

RVW4GD1100
ActiveE-Switch
ROCKER SWITCH, NON ILLUMINATED, DPST, ON-ON, BLACK, PANEL MOUNT, 20 A
Deep-Dive with AI
Search across all available documentation for this part.
RVW4GD1100
ActiveE-Switch
ROCKER SWITCH, NON ILLUMINATED, DPST, ON-ON, BLACK, PANEL MOUNT, 20 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RVW4GD1100 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) |
| Circuit | DPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 20 A |
| Electrical Life | 6000 Cycles |
| Ingress Protection | IP54 - Dust Protected, Water Resistant |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [x] | 36.8 mm |
| Panel Cutout Dimensions [y] | 21 mm |
| Switch Function | On-On |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
RVW4GD1 Series
The RVW4GD1100 is a DPST non-illuminated panel-mount full size Power Rocker Switch with ON-ON operation and silver-plated brass terminals. It features an internal dust and water protection seal.
