FGN0.38BK200
ActiveTechflex

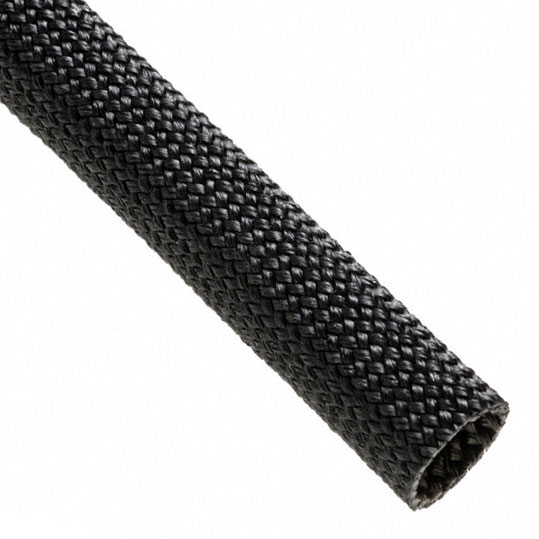

EXPAND SLEEVING 3/8" X 200' BLK
Deep-Dive with AI
Search across all available documentation for this part.
FGN0.38BK200
ActiveTechflex
EXPAND SLEEVING 3/8" X 200' BLK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FGN0.38BK200 |
|---|---|
| Abrasion Protection | Abrasion and Cut Resistant |
| Color | Black |
| Diameter - Inside, Expanded [diameter] | 15.88 mm |
| Diameter - Inside, Expanded [diameter] | 0.625 in |
| Diameter - Inside, Non-Expanded [diameter] | 0.375 in |
| Diameter - Inside, Non-Expanded [diameter] | 9.53 mm |
| Features | Vibration Resistant, Clean Cut, Chemical Resistant |
| Heat Protection | Heat Resistant |
| Length | 60.96 m |
| Length | 200 ' |
| Liquid Protection | Gasoline Resistant |
| Material | Fiberglass, Resin Coated, Halogen Free |
| Material Flammability Rating | UL VW-1 |
| Type | Sleeve |
| Type Attributes | Expandable |
| Wall Thickness [custom] | 0.043 in |
| Wall Thickness [custom] | 1.09 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 232.23 | |
| 2 | $ 213.59 | |||
| 3 | $ 203.38 | |||
| 5 | $ 191.22 | |||
| 7 | $ 183.61 | |||
| 10 | $ 175.88 | |||
| 25 | $ 157.47 | |||
| 50 | $ 144.84 | |||
Description
General part information
FGN0.38 Series
Sleeve X 200' (60.96m) Black
Documents
Technical documentation and resources
