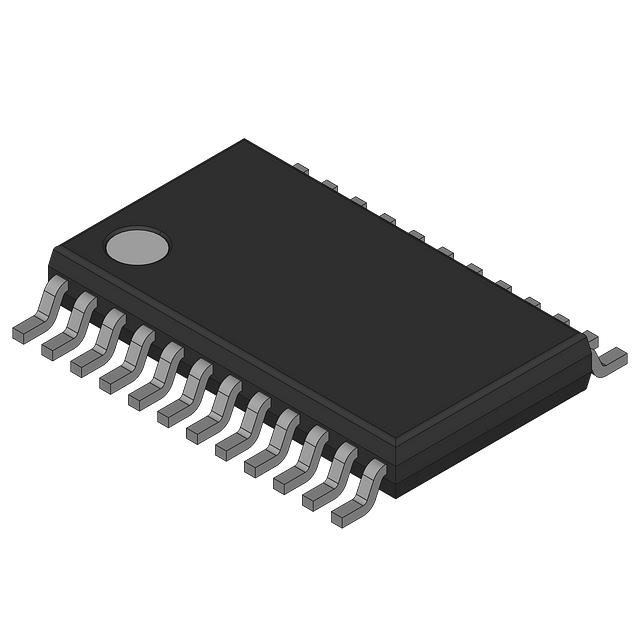

BQ3060PW-BE

Active

Benchmarq

IC BAT MFUNC LI-ION 2-4C 24TSSOP

Search across all available documentation for this part.

Active

Benchmarq

IC BAT MFUNC LI-ION 2-4C 24TSSOP

Technical Specifications

Parameters and characteristics for this part

Specification	BQ3060PW-BE

Battery Chemistry	Lithium Ion/Polymer
Fault Protection	Over Temperature, Over/Under Voltage, Short Circuit, Over Current
Function	Multi-Function Controller
Interface	SMBus
Mounting Type	Surface Mount
Number of Cells [Max]	4
Number of Cells [Min]	2 cells
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	24-TSSOP
Package / Case	0.173 in, 4.4 mm
Supplier Device Package	24-TSSOP

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Battery Chemistry	Number of Cells [Min]	Number of Cells [Max]	Interface	Supplier Device Package	Fault Protection	Function	Mounting Type
Benchmarq BQ3060PW-BE	85 °C	-40 °C	24-TSSOP	0.173 in 4.4 mm	Lithium Ion/Polymer	2 cells	4	SMBus	24-TSSOP	Over Current Over Temperature Over/Under Voltage Short Circuit	Multi-Function Controller	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	26	$ 11.78

General part information

Battery Multi-Function Controller IC Lithium Ion/Polymer 24-TSSOP
