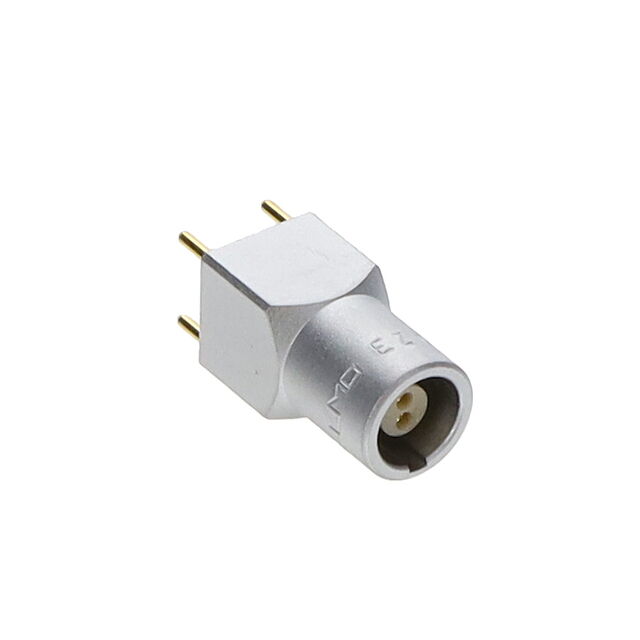

EZG.00.302.CLN

Active

LEMO

CONN RCPT FMALE 2POS GOLD SOLDER

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 2POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	EZG.00.302.CLN

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	5 A
Fastening Type	Push-Pull
Features	Board Guide
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	302
Shielding	Shielded
Termination	Solder

Part	Shell Finish	Features	Primary Material	Shell Size - Insert	Fastening Type	Current Rating (Amps)	Contact Material	Shell Material	Contact Finish - Mating	Color	Connector Type	Ingress Protection	Termination	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Mounting Type	Orientation	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insert Material	Material Flammability Rating
LEMO EZG.00.302.NLN	Nickel	Board Guide	Metal	302	Push-Pull	5 A	Bronze	Brass	Gold	Silver	Receptacle Female Sockets	IP50	Solder	2	-55 °C	250 °C	Shielded	Through Hole	G	59 Áin	1.5 Ám	Polyetheretherketone (PEEK)	UL94 V-0
LEMO EZG.00.302.CLN	Chrome	Board Guide	Metal	302	Push-Pull	5 A	Bronze	Brass	Gold	Silver	Receptacle Female Sockets	IP50	Solder	2	-55 °C	250 °C	Shielded	Through Hole	G	59 Áin	1.5 Ám	Polyetheretherketone (PEEK)	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Receptacle, Female Sockets Solder
