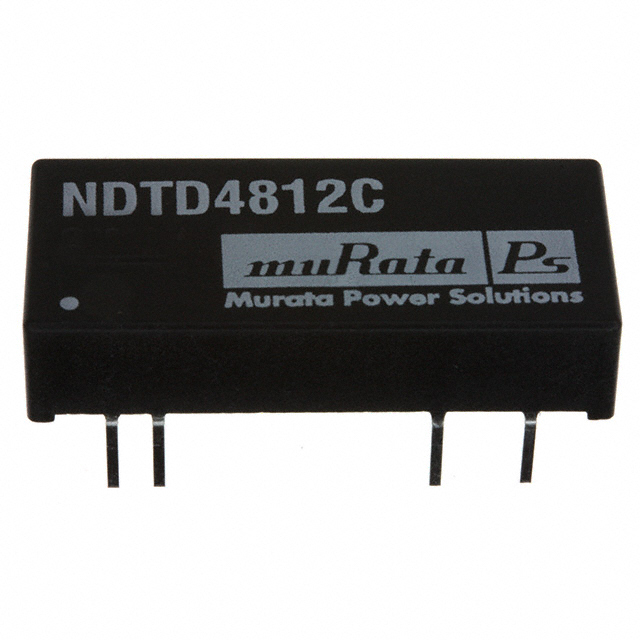

NDTD4812C

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER +/-12V 3W

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER +/-12V 3W

Technical Specifications

Parameters and characteristics for this part

Part	Efficiency	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Number of Outputs	Voltage - Output 1	Package / Case	Voltage - Isolation	Mounting Type	Voltage - Input (Min) [Min]	Type	Voltage - Input (Max) [Max]	Voltage - Output 2	Power (Watts)	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)
Murata Power Solutions Inc. NDTD4803C	72 %	6.9 mm	0.27 "	0.58 "	14.7 mm	1.27 in	32.3 mm	2	3.3 V	24-DIP Module (600 mil 8 Leads)	1000 V	Through Hole	36 V	Isolated Module	75 V	-3.3 V	3 W	ITE (Commercial)	85 °C	-40 °C	454 mA	454 mA
Murata Power Solutions Inc. NDTD4812C	80 %	6.9 mm	0.27 "	0.58 "	14.7 mm	1.27 in	32.3 mm	2	12 V	24-DIP Module (600 mil 8 Leads)	1000 V	Through Hole	36 V	Isolated Module	75 V	-12 V	3 W	ITE (Commercial)	85 °C	-40 °C		125 mA	125 mA
Murata Power Solutions Inc. NDTD4805C	76 %	6.9 mm	0.27 "	0.58 "	14.7 mm	1.27 in	32.3 mm	2	5 V	24-DIP Module (600 mil 8 Leads)	1000 V	Through Hole	36 V	Isolated Module	75 V	-5 V	3 W	ITE (Commercial)	85 °C	-40 °C	300 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 36V - 75V Input
